GW Twin-screw Extruder
GPM Twin-screw Extruder
84772090
30 working days
T/T; L/C; Cash.etc.
13 months
Engineer available
Testing before delivery
CE; SGS; UL
Respond within 24 hours
SIEMENS brands
SIEMENS;SCHNEIDER;ABB;OMRON, etc.
Twin-screw Extruder

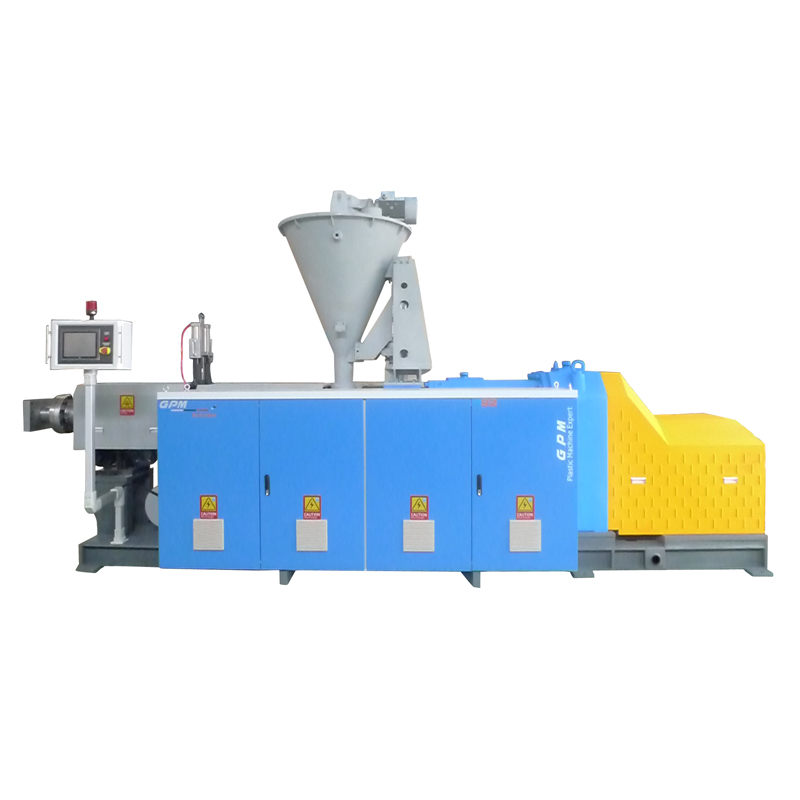

GSZ Series Conical Twin Screw Extruder is suitable for the extrusion of all kinds of pvc materials, and PP/PE WPC, etc. Special vertical integrated gearbox system, high torque, high output.
Twin-screw extruder/conical twin-screw extruder/parallel twin-screw extruder
1)Bimetal screw and barrel, nitrided and polished, chromium plated, special treatment.
2) Parallel twin-screw feeder, powerful and high efficiency.
3) Vertical integrated gearbox, more powerful and more stable.
4) High output, can be 40-1100k/h
5) Various of models for choosing, suitable for making different products.
Twin-screw Extruder
GSZ Series Conical Twin Screw Extruder is suitable for the extrusion of all kinds of pvc materials, and PP/PE WPC, etc. Special vertical integrated gearbox system, high torque, high output.
Twin-screw extruder/conical twin-screw extruder/parallel twin-screw extruder
1)Bimetal screw and barrel, nitrided and polished, chromium plated, special treatment.
2) Parallel twin-screw feeder, powerful and high efficiency.
3) Vertical integrated gearbox, more powerful and more stable.
4) High output, can be 40-1100k/h
5) Various of models for choosing, suitable for making different products.
SPECIFICATIONS FOR Conical Twin-screw Extruder | ||||
Extruder model | Max.output (kg/h) | Total power(kw) | ||
GSZ45/100 | 40-80 | 15/18.5 | ||
GSZ51/105 | 80-110 | 18.5/22 | ||
GSZ55/110 | 120-150 | 22/30 | ||
GSZ65/132 | 280-350 | 37/45 | ||
GSZ80/156 | 380-450 | 55/75 | ||
GSZ80/173 | 500-650 | 75 | ||
GSZ92/188 | 700-850 | 110/132 | ||
GSZ95/196 | 1000 | 132/160 |

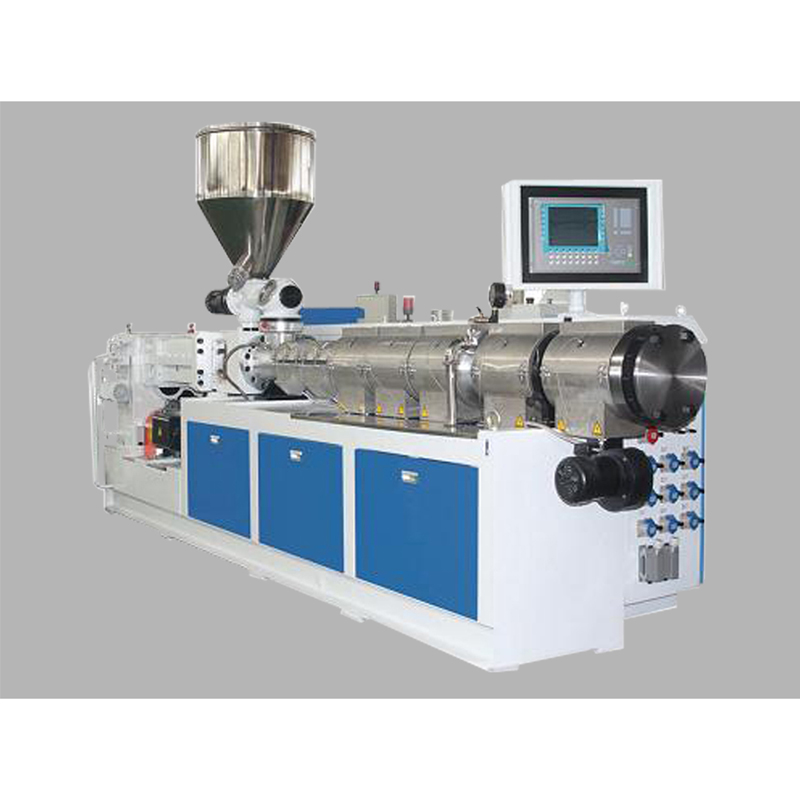

Specifications for Parallel twin-screw extruder | ||||||
Model | Motor(KW) | Screw diameter(mm) | Max.speed(rpm) | L/D | Max Capacity (kg/h) | Weight (kg) |
GSP75/28 | 37 | 75 | 36 | 28:1 | 280 | 4100 |
GSP93/31 | 45/55 | 93 | 45 | 31:1 | 450 | 4700 |
GSP110/31 | 90/110 | 110 | 45 | 31:1 | 680 | 6500 |
GSP120/31 | 110/132 | 120 | 45 | 31:1 | 850 | 7500 |
GSP135/31 | 160 | 135 | 45 | 31:1 | 1100 | 8400 |
SPECIFICATIONS FOR Conical Twin-screw Extruder | ||||
Extruder model | Max.output (kg/h) | Total power(kw) | ||
GSZ45/100 | 40-80 | 15/18.5 | ||
GSZ51/105 | 80-110 | 18.5/22 | ||
GSZ55/110 | 120-150 | 22/30 | ||
GSZ65/132 | 280-350 | 37/45 | ||
GSZ80/156 | 380-450 | 55/75 | ||
GSZ80/173 | 500-650 | 75 | ||
GSZ92/188 | 700-850 | 110/132 | ||
GSZ95/196 | 1000 | 132/160 |
Specifications for Parallel twin-screw extruder | ||||||
Model | Motor(KW) | Screw diameter(mm) | Max.speed(rpm) | L/D | Max Capacity (kg/h) | Weight (kg) |
GSP75/28 | 37 | 75 | 36 | 28:1 | 280 | 4100 |
GSP93/31 | 45/55 | 93 | 45 | 31:1 | 450 | 4700 |
GSP110/31 | 90/110 | 110 | 45 | 31:1 | 680 | 6500 |
GSP120/31 | 110/132 | 120 | 45 | 31:1 | 850 | 7500 |
GSP135/31 | 160 | 135 | 45 | 31:1 | 1100 | 8400 |
