PVC/UPVC Pipe Extrusion Line

GPM series PVC Dual-Pipe Production Line is mainly used in the production of agricultural drainage, water supply and drainage, and cable laying,etc. The pipe diameter range: Φ20-800mm. Max line speed:15m/min.

Quantity:
  • GWG63 PVC/UPVC Pipe Extrusion Line
  • GPM PVC/UPVC Pipe Extrusion Line
  • 84772090
  • 30 working days
  • T/T; L/C; Cash.etc.
  • 13 months
  • Engineer available
  • Testing before delivery
  • CE; SGS; UL
  • Respond within 24 hours
  • SIEMENS brands
  • SIEMENS;SCHNEIDER;ABB;OMRON, etc.
PVC Dual-Pipe Production Line
This unit consists of conical  twin-screw extruder, dual outlets mold, vacuum forming tank, multi claws haul-off machine, saw cutting machine or planetary cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer inkjet printer, etc. to achieve the production and manufacture of high-grade pipe.
1. High output capacity design, max line speed can be 15 m/min.
2. Independent vacuum, haul-off and cutting, good stability, low scrap rate.
3. CaCo3 can add more than 200%, low cost formula.

Specifications for PVC/UPVC Pipe Extrusion Line
Model
Pipe Spec(mm)
Conical twin screw extruder
Max output(kg/h)
Total power(kw)
GWG63-PVC
Φ20-Φ63
GSZ65/132
180-300
104
GWG160-PVC
Φ63-Φ160
GSZ65/132
180-300
105
GWG250-PVC
Φ75-Φ250
GSZ80/156
300-450
110
GWG315-PVC
Φ250-Φ315
GSZ80/156
300-450
216
GWG450-PVC
Φ200-Φ450
GSZ92/188
650-750
290
GWG630-PVC
Φ315-Φ630
GSZ92/188
750-850
350
GWG800-PVC
Φ500-Φ800
GSZ135/31
950-1100
410

Parallel twin-screw extruder technical specifications

Motor(KW)
Screw diameter(mm)
Max.speed(rpm)
L/D
Max Capacity
(kg/h)
Weight
(kg)
GSP75/28
37
75
36
28:1
280
4100
GSP93/31
45/55
93
45
31:1
450
4700
GSP110/31
90/110
110
45
31:1
680
6500
GSP120/31
110/132
120
45
31:1
850
7500
GSP135/31
160
135
45
31:1
1100
8400

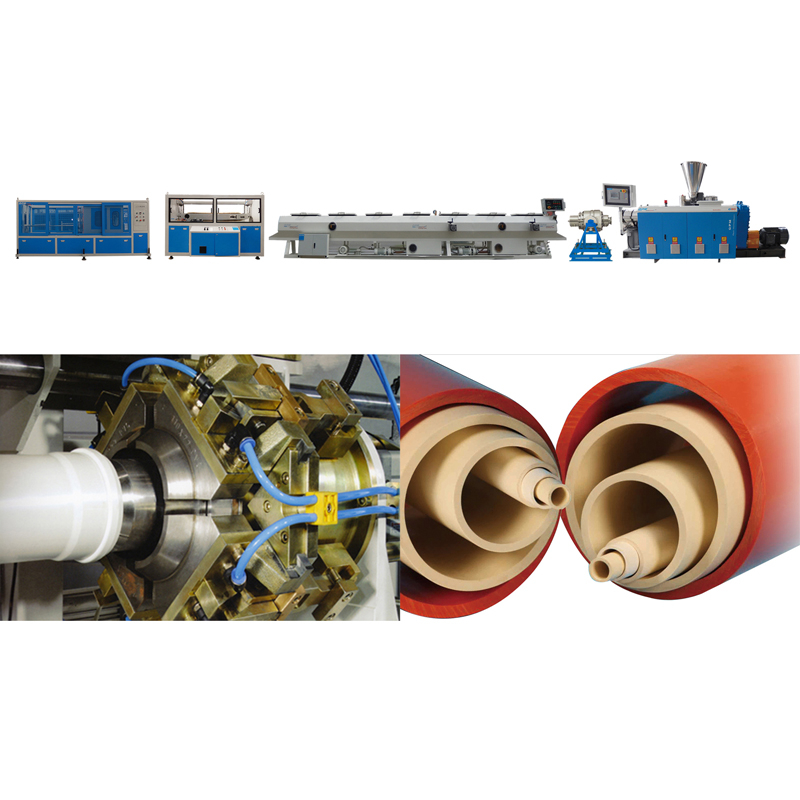

PVC/UPVC Pipe Extrusion Line

High output conical twin-screw extruder

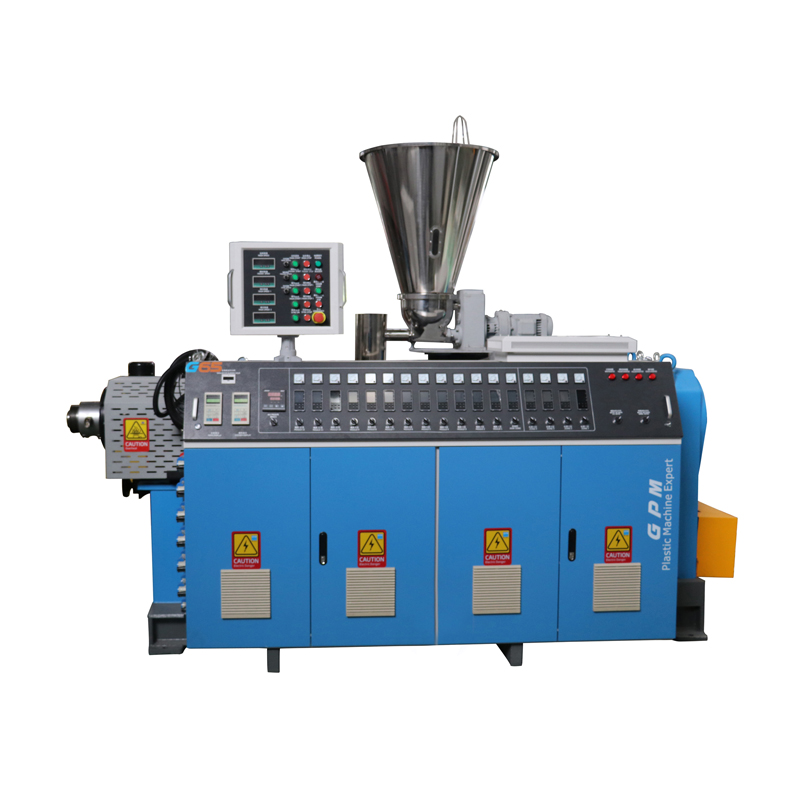

Conical twin-screw extruder

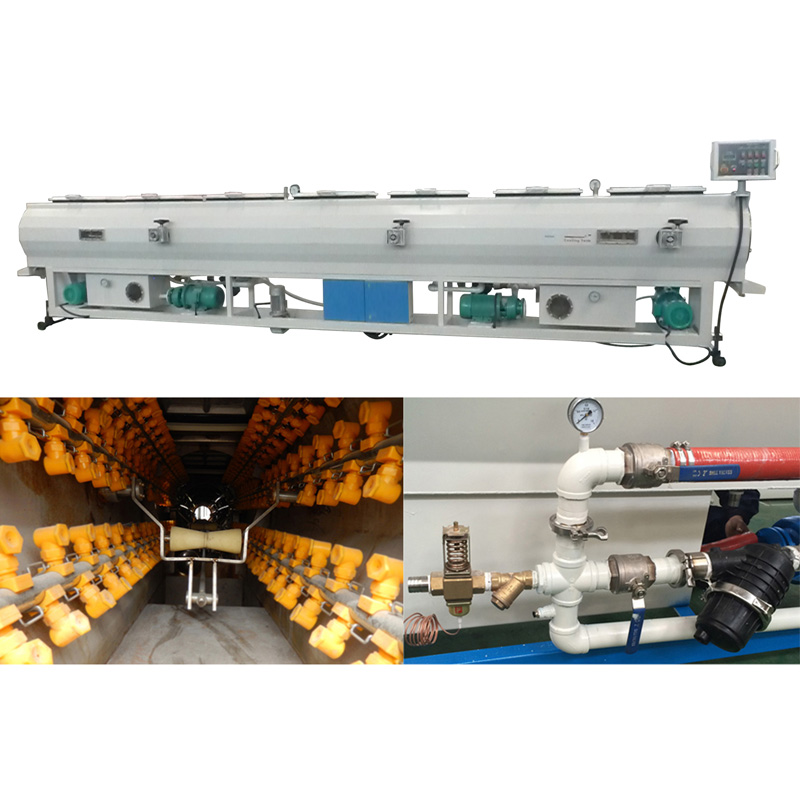

Spraying and cooling tank
pvc water pipe production line

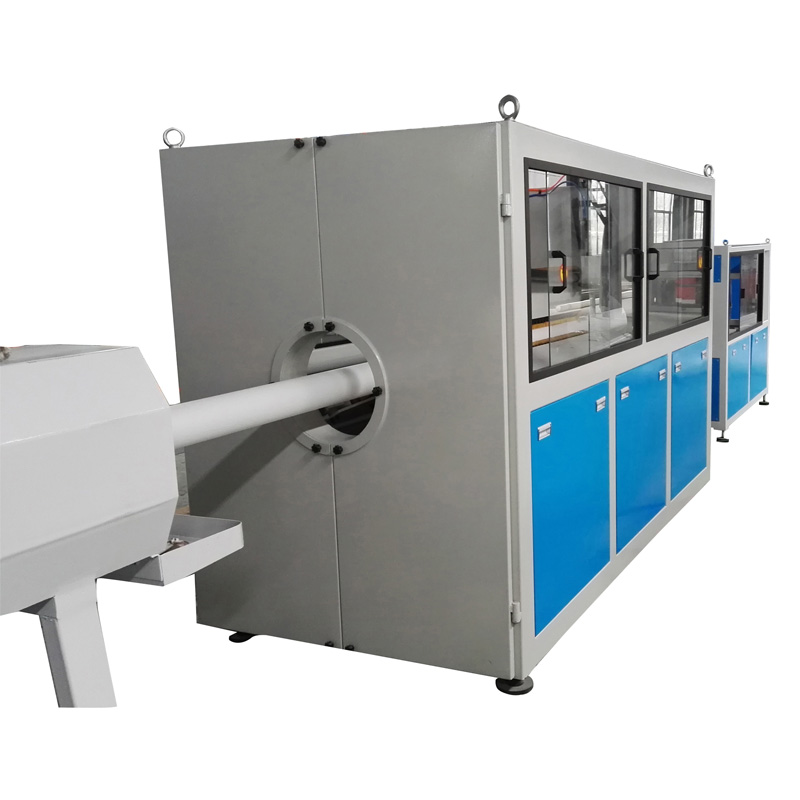

Multi-claw Haul-off unit
pvc water supply pipe extrusion line

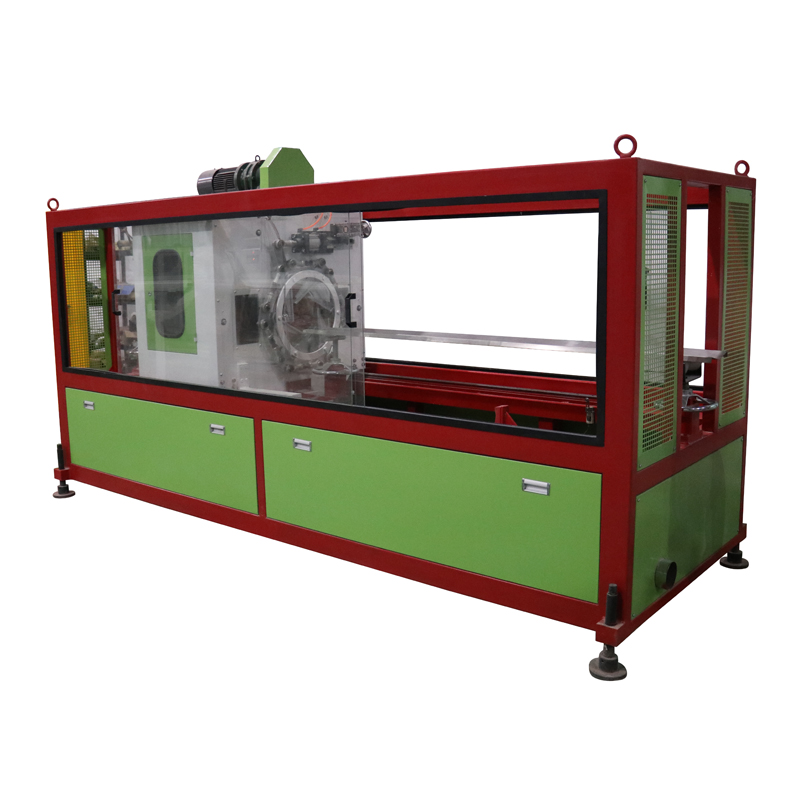

Knife lifting cutter or Planetary cutter

pvc water supply pipe making machinery
