PET Sheet Extrusion Line

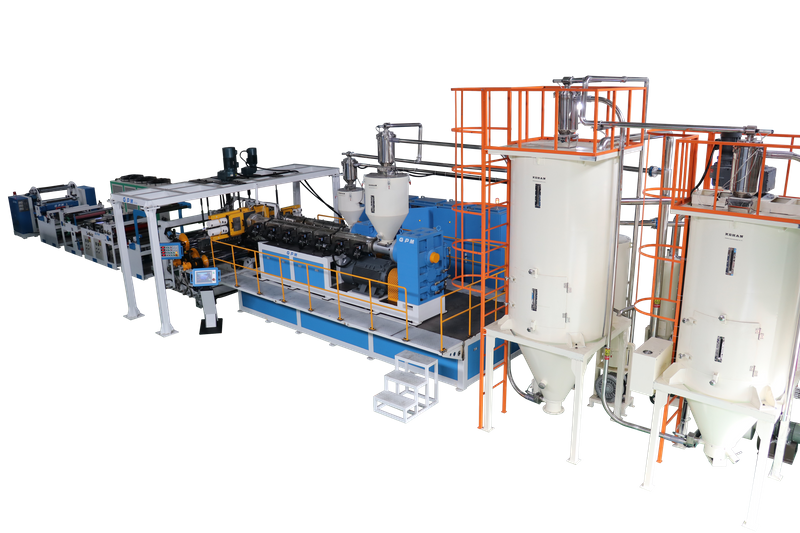

GPM PET sheet production line is for producing defferent PET sheets, the production line is consist of Single screw extruder / Parallel double screw extruder, Hydraulic screen changer, T-die, three roller calender, Haul-off machine, widing machine and cutter, etc.

Quantity:
  • GW120-GF1200 PET Sheet Extrusion Line
  • GPM PET Sheet Extrusion Line
  • 84772090
  • 45 working days
  • T/T; L/C; Cash.etc.
  • 13 months
  • Engineer available
  • Testing before delivery
  • CE; SGS; UL
  • Respond within 24 hours
  • SIEMENS brands
  • SIEMENS;SCHNEIDER;ABB;OMRON, etc.

GPM PET sheet production line is for producing defferent PET sheets, the production line is consist of Single screw extruder / Parallel double screw extruder, Hydraulic screen changer, T-die, three roller calender, Haul-off machine, widing machine and cutter, etc.



Main Features of pet multi-layer sheet extrusion machine:

High degree of automation, high transparency, high output, and can use single screw extruder or twin screw extruder to match defferent needs of customer.

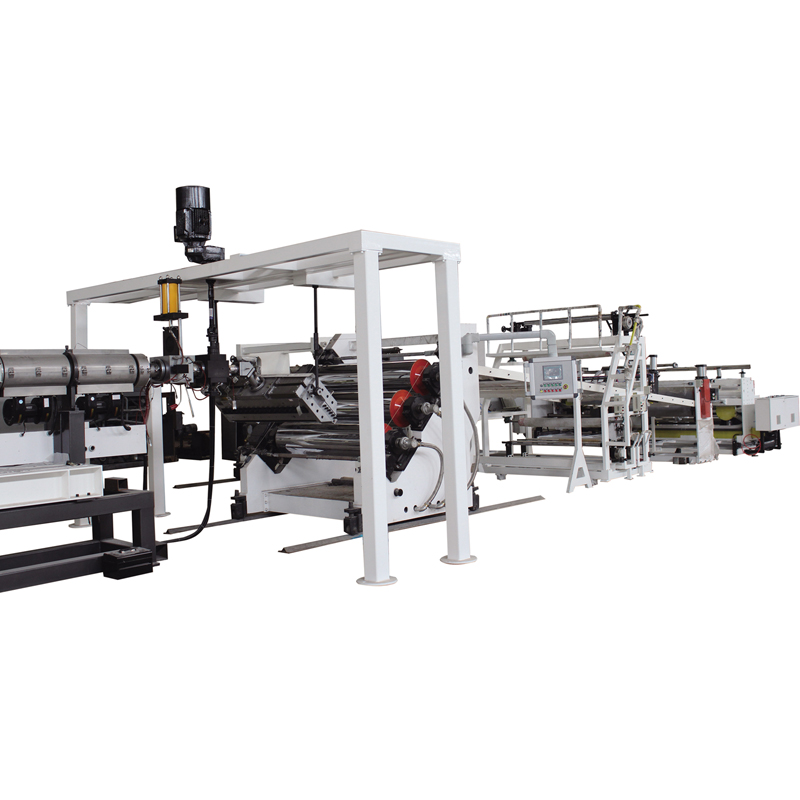

PET Sheet production linePET Sheet making machine


SPECIFICATIONS FOR PET SHEET EXTRUSION LINE
Model
GW120-GF1200 high exfficient
GP-75/40-GF1000 Non crystalline
Extruder Model
GW120/35 single screw
GP75/40 parallel double screw
Main motor power
110KW
132KW
Products thickness
0.15-1.5mm
0.15-1.5mm
Capacity
500kg/h
600kg/h

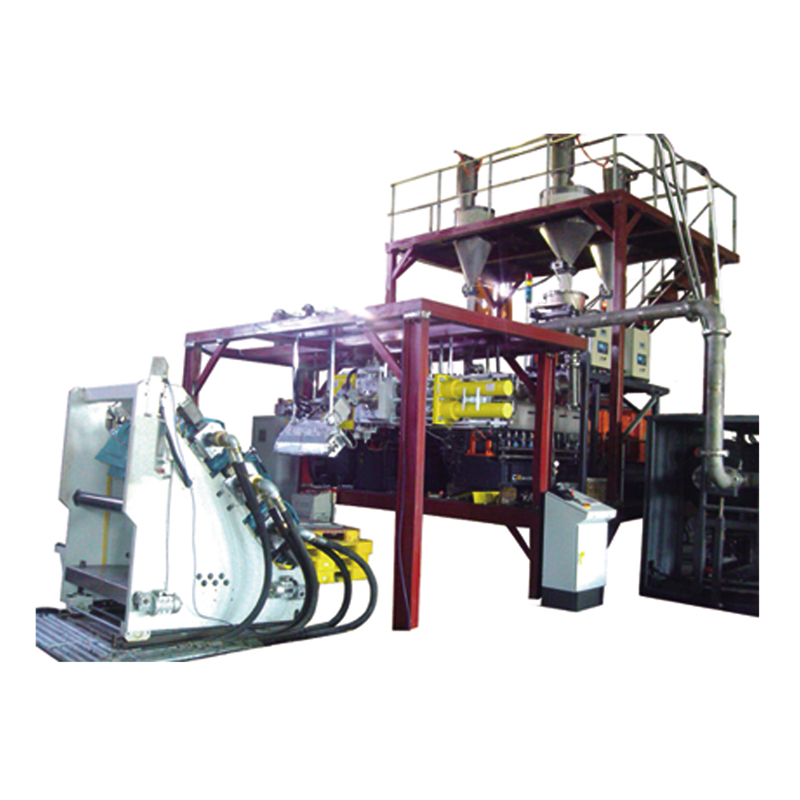

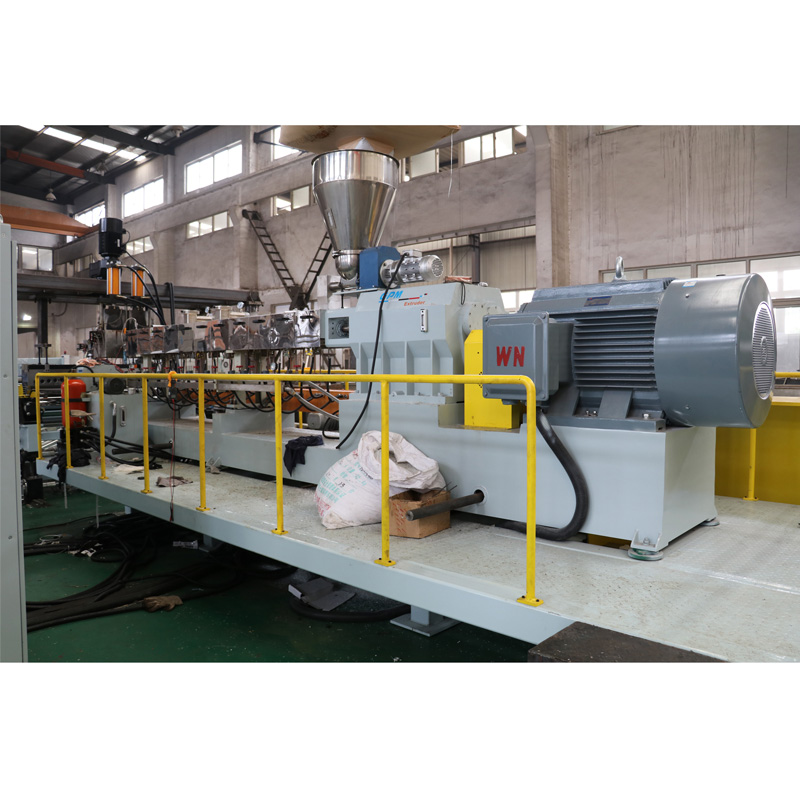

PET Non-crystallization extruding system
The newest screw thread unit, low power consumption, high output, is suitable for PET sheet extruding.
PET Sheet extrusion machine

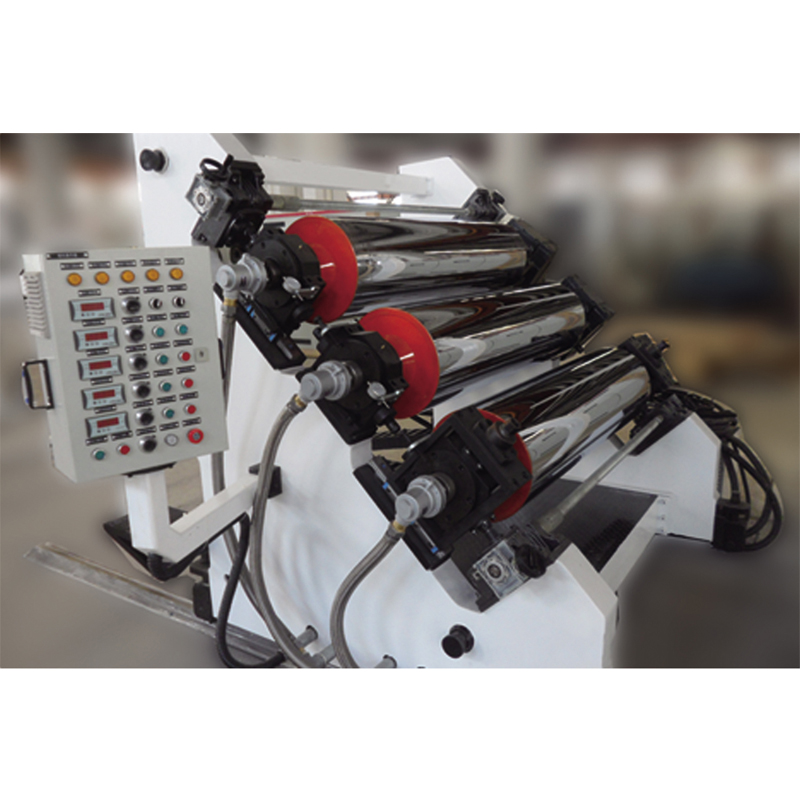

Three roller calender

The high-precision three roller calender forming system, with servo control, hydraulic compress structure, is cuitable for the stable extrusion of sheet thickness at 0.15mm.

PET Sheet extrusion production machine

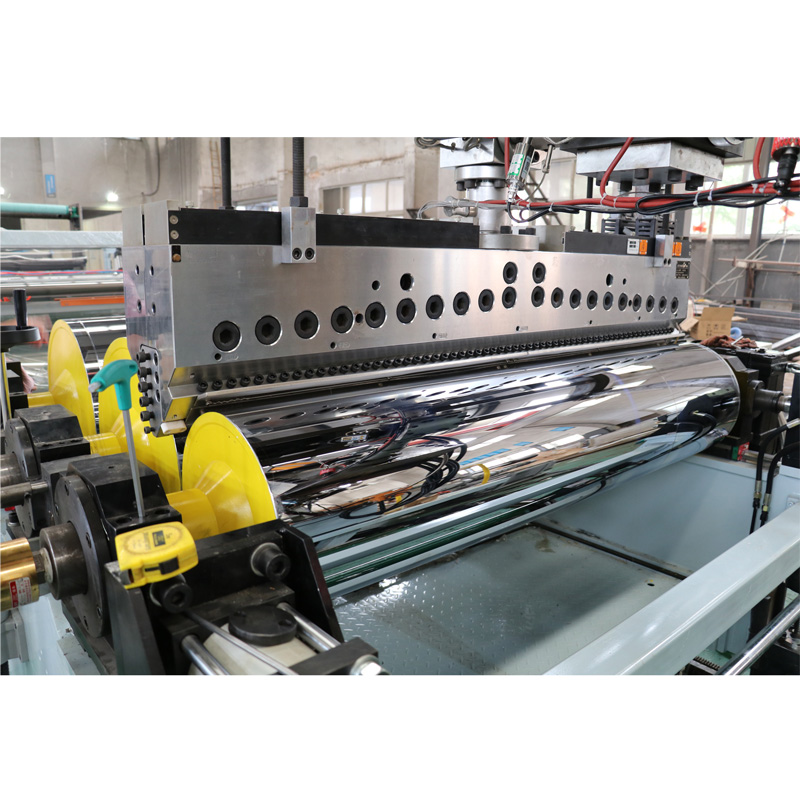

Precision die system
Can choose the self-regulation die to realize the change between extrusion mode and casting mode, is suitable for the sheet with different thickness.
PET Sheet making line

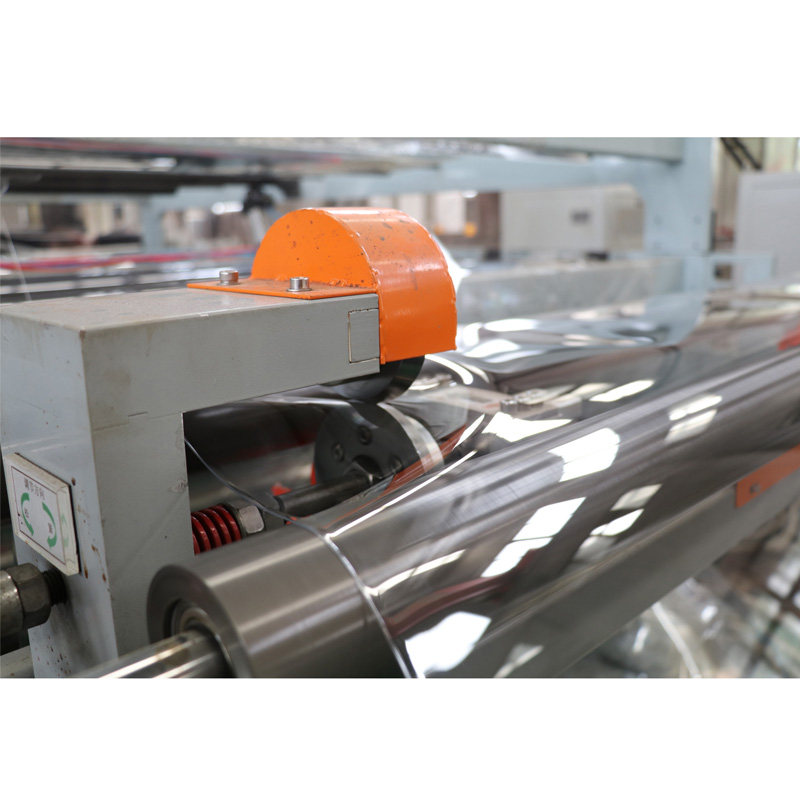

Automatic rolling & cutting device
Easy to adjust, cuting straightness is high.
PET Sheet making tools
