PE/PPR High-speed Pipe Extrusion Line

GPM series PE/PPR High-speed Pipe Extrusion Line is mainly used in making the 20-63 pipe in high speed, for the 20mm pipe the speed can be 30m/min

Quantity:
  • GWG63 PE/PPR High-speed Pipe Extrusion Line
  • GPM PE/PPR High-speed Pipe Extrusion Line
  • 84772090

PE/PPR High-speed Pipe Extrusion Line

GPM series PE/PPR High-speed Pipe Extrusion Line is mainly used in making the 20-63 pipe in high speed, for the 20mm pipe the speed can be 30m/min


The consist of line
1. Vacuum feeding
2. Hopper dryer
3. Single screw extruder
4. Color string extruder
5. Co-extrusion mould
6. Calibrator
7. Spray vacuum calibration tank
8. Spray cooling water tank
9. Haul-off machine
10. No dust cutter; planetary cutter
11. Pipe Stacker or winding machine

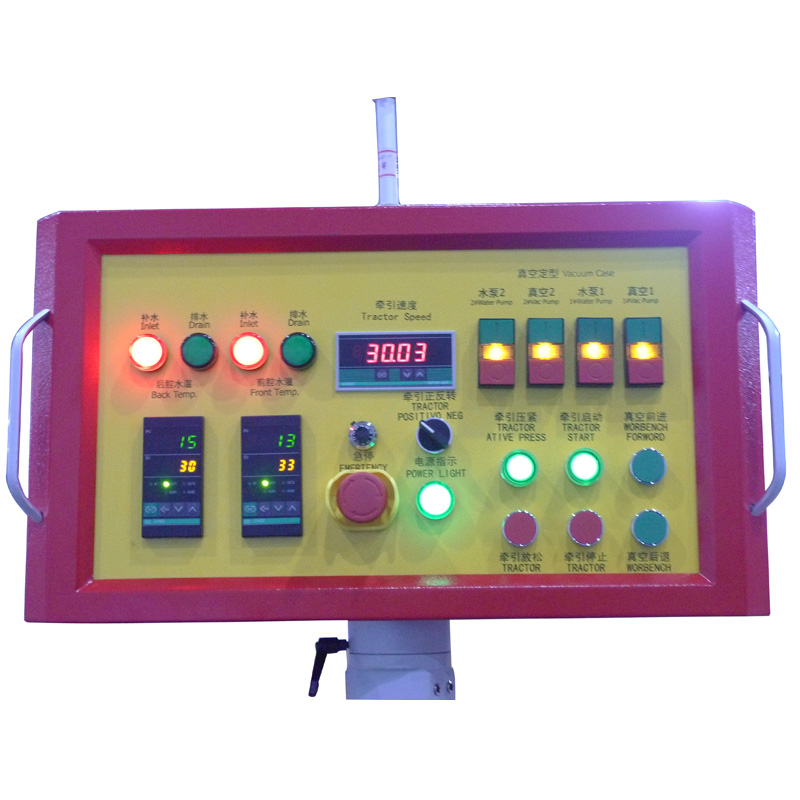

PP PPR pipe making machine.jpg

PPR high speed pipe production line.jpg




SPECIFICATIONS FOR  PE/PPR High-Speed PIPE EXTRUSION LINE

Model
Pipe spec(mm)
Extruder
 Max.output
(kg/h)
Main motor power(KW)

Maximum line speed

(m/min)

GW63-PE
Φ16-Φ63
GW60/38
150-380
179
30m/min
GW63-PPR
Φ16-Φ63
GW60/38
150-380
179
30m/min


PP/PPR Pipe Extrusion Line

1) High output, can be improved 30-50% at the same main motor power condition.


2) High production line speed, for 20mm pipe the line speed can be 30m/min

3) Haul-off machine and cutter can be servo control.

4) Optional equipment automatic weighing measurement and thickness control system.


Extruder

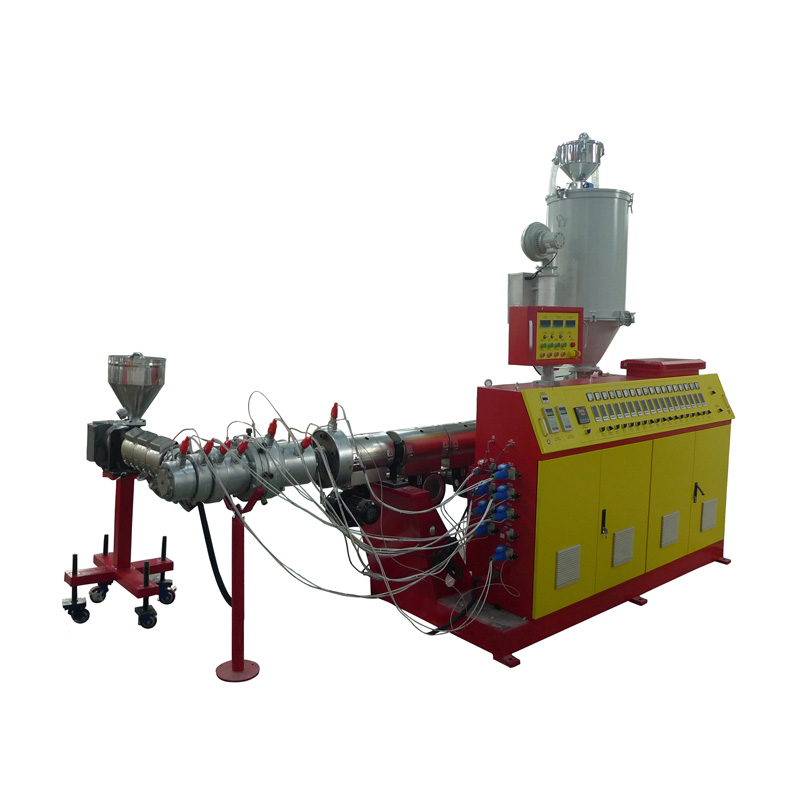

PP pipe making machine.jpg

Extrusion Mold

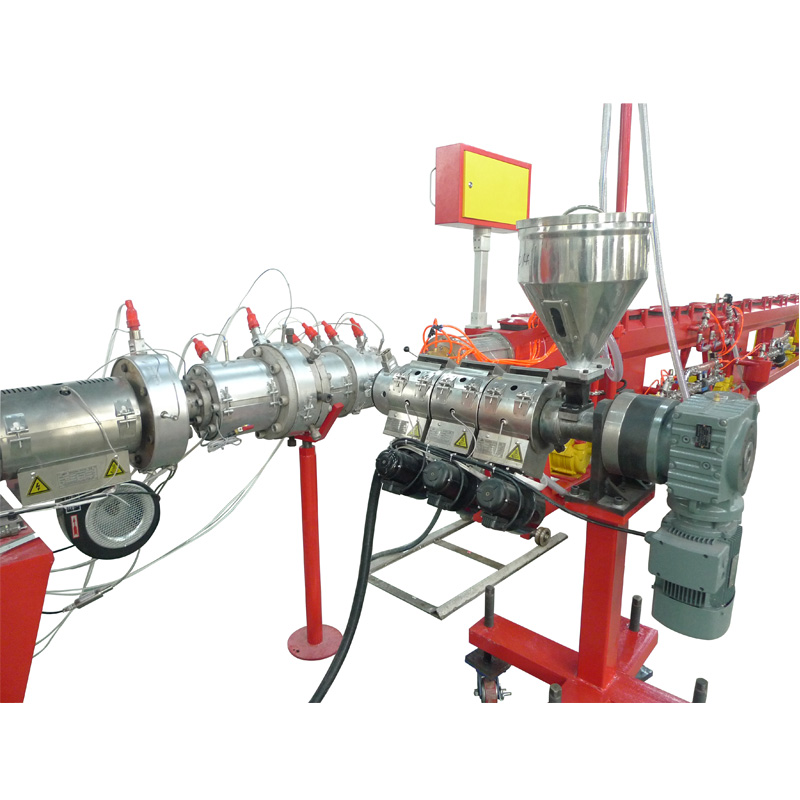

high speed PP PPR pipe extrusion line.jpghigh speed PPR pipe extrusion line.jpg

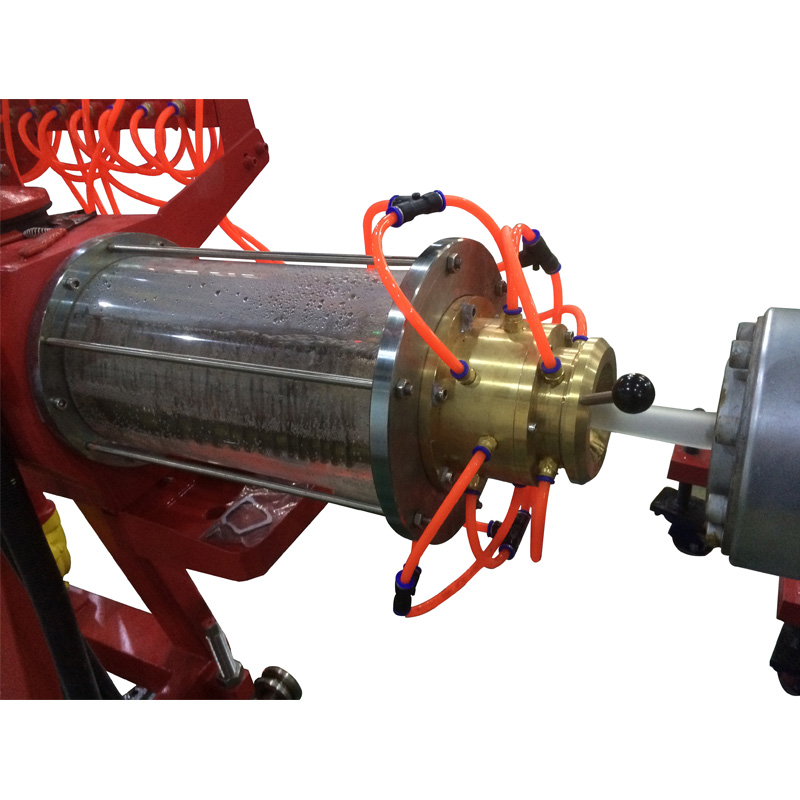

PPR pipe making machine.jpgVcuuming & Spraying tank

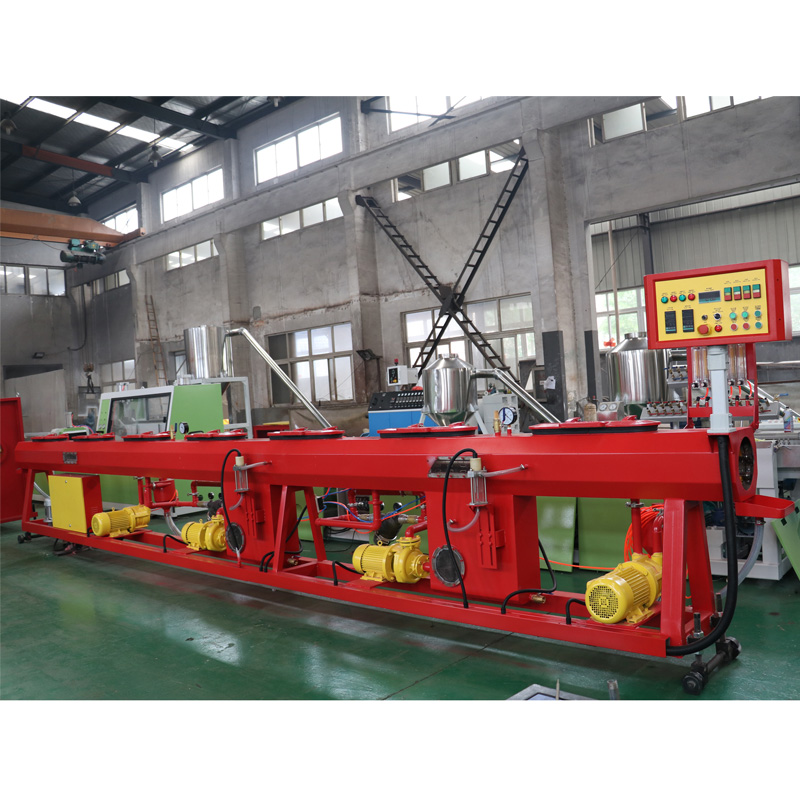

ppr water supply pipe extruding line.jpg
Haul-off machine

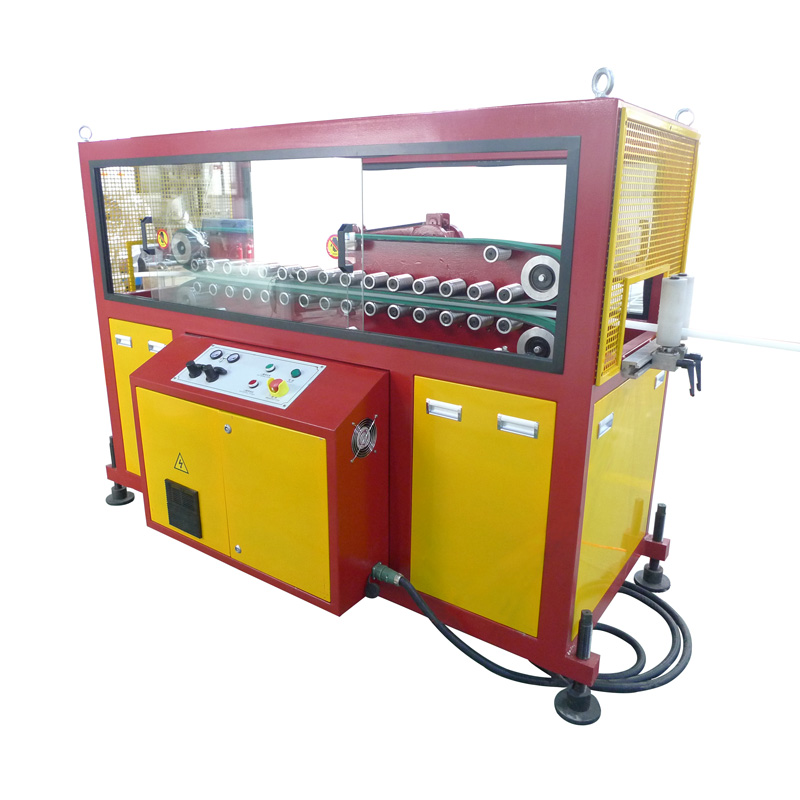

high speed PP pipe extrusion line.jpg


No-dust cutter

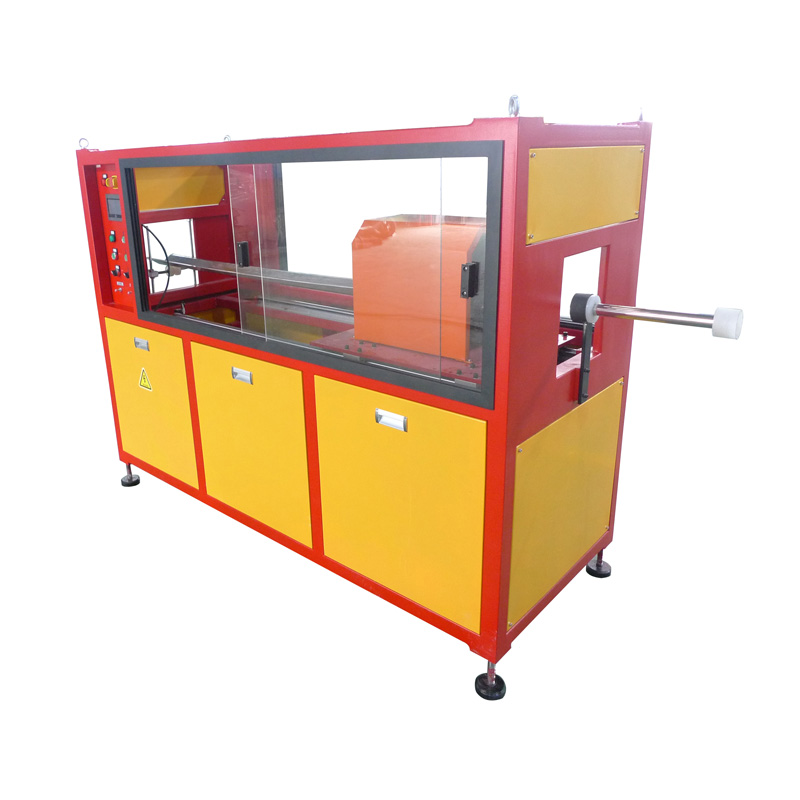

PP PPR pipe production line.jpg
