PE/HDPE Pipe Extrusion Line

GPM series PE/HDPE Pipe Extrusion Line is mainly used in the production of water supply pipe and drainage pipe. The pipe diameter range: Φ20-1200mm. Max line speed:35m/min.
Quantity:
Inquire Add to Basket

  • GWG63 PE/HDPE Pipe Extrusion Line

  • GPM PE/HDPE Pipe Extrusion Line

  • 84772090

  • 30 working days

  • T/T; L/C; Cash.etc.

  • 13 months

  • Engineer available

  • Testing before delivery

  • CE; SGS; UL

  • Respond within 24 hours

  • SIEMENS brands

  • SIEMENS;SCHNEIDER;ABB;OMRON, etc.

PE/HDPE Pipe Extrusion Line
1. Vacuum feeding
2. Hopper dryer
3. Single screw extruder
4. Color string extruder

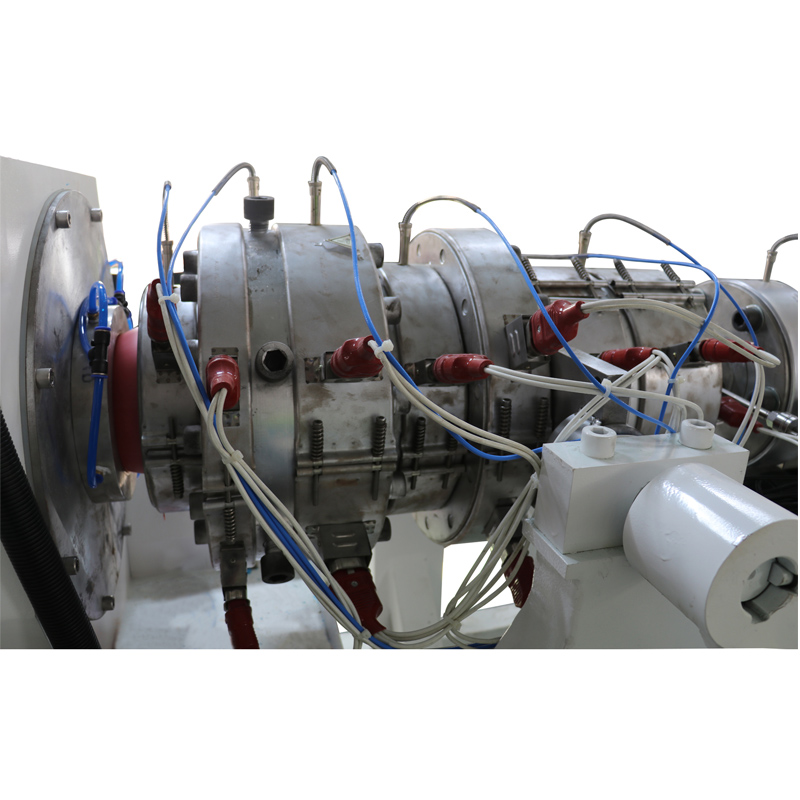

5. Co-extrusion mould
6. Calibrator
7. Spray vacuum calibration tank
8. Spray cooling water tank
9. Haul-off machine

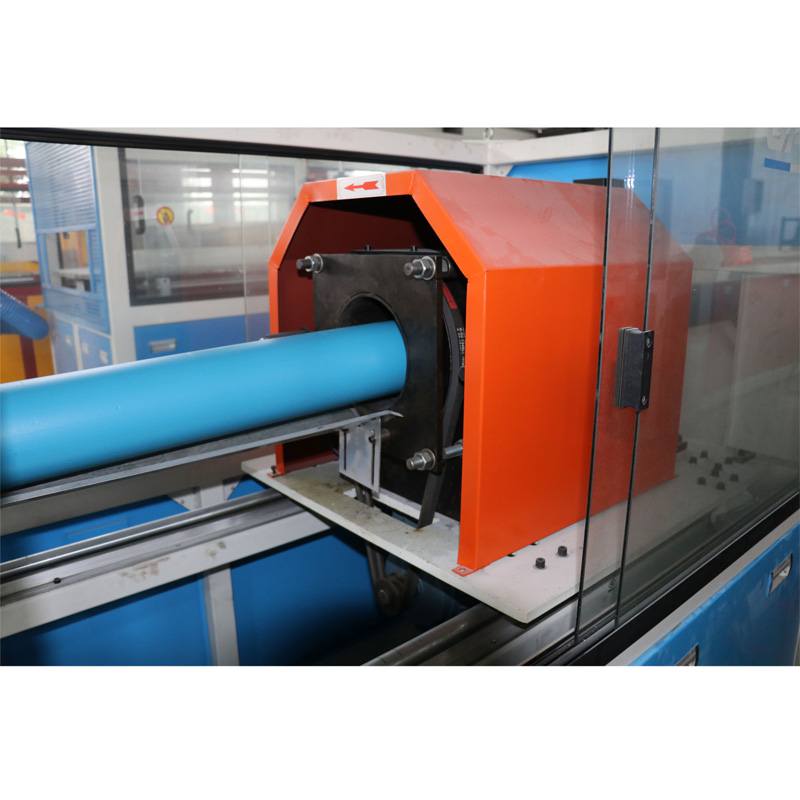

10. No dust cutter; planetary cutter

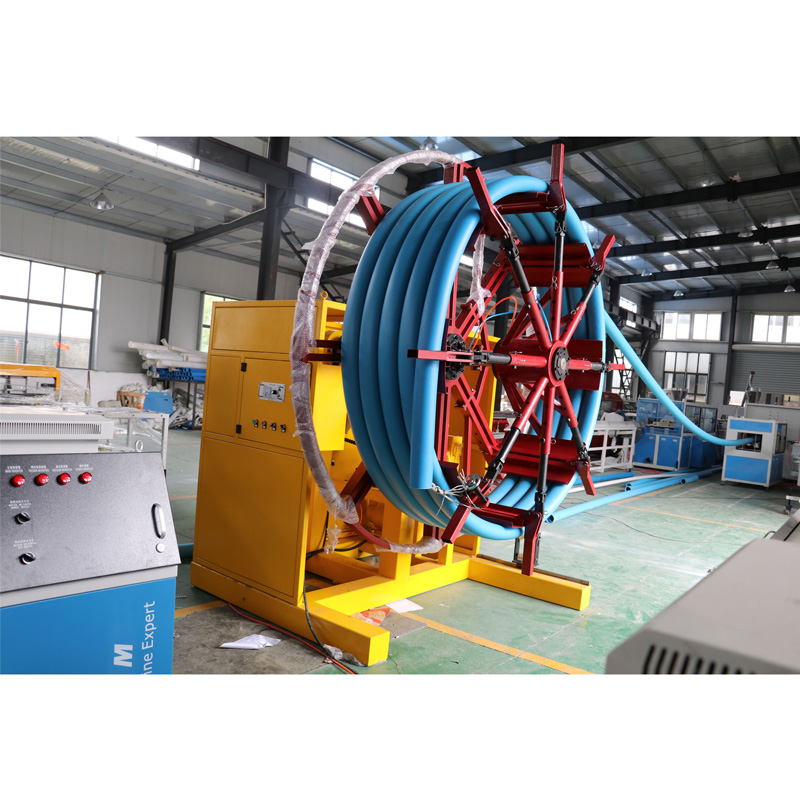

11. Pipe Stacker or winding machine




Technical specifications for PE/HDPE Pipe Extrusion Line
Model
Pipe spec(mm)
Single screw extruder
 Max.output(kg/h）
Total power(kw)
GWG63-PE
Φ20-Φ63
GW65/38
250-300
75/90
GWG110-PE
Φ63-Φ110
GW65/38
250-300
90
GWG250-PE
Φ75-Φ250
GW75/38
500-550
185
GWG450-PVC
Φ160-Φ450
GW90/38
700-750
250
GWG630-PVC
Φ315-Φ630
GW120/33
900-1100
280
GWG800-PVC
Φ400-Φ800
GW150/33
1000-1200
315
GWG1000-PVC
Φ630-Φ1000
GW150/33
1000-1200
315
GWG1200-PE
Φ800-Φ1200
GW120/33 &GW90/38
1500-1700
280/220

1) High output, can be improved 30-50% at the same main motor power condition.


2) High production line speed, for Φ20mm pipe can be 35m/min.

3) Haul-off machine and cutter can be servo control.

4) Optional equipment automatic weighing measurement and thickness control system.

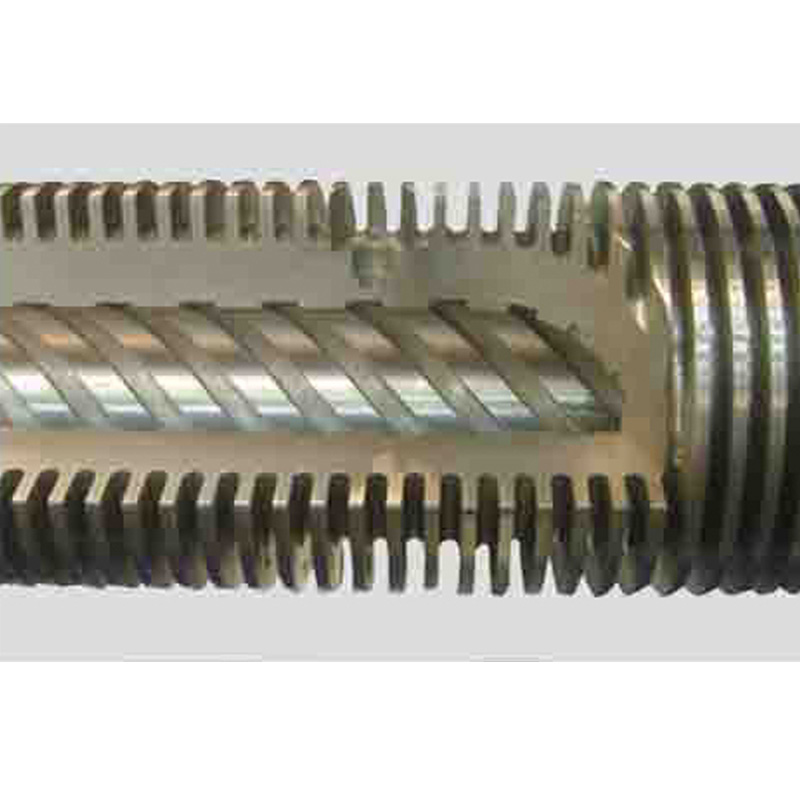

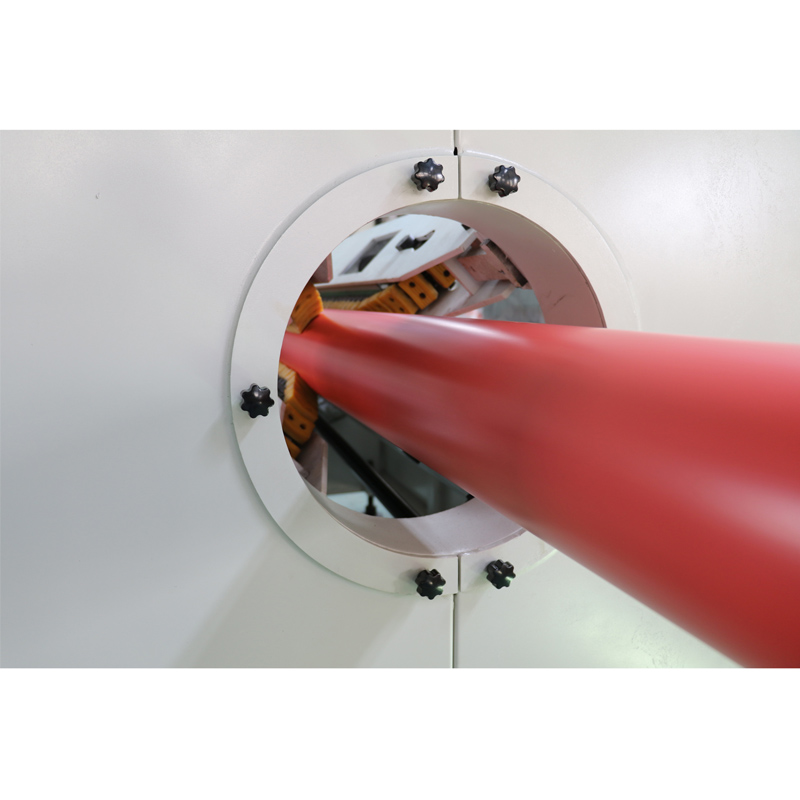

screw for pe pipe production line sleeve for pe pipe production line HDPE pipe extrusion line no-dust cutter high quality pe pipe machinery
