CPVC Dual-Pipe Extrusion Line

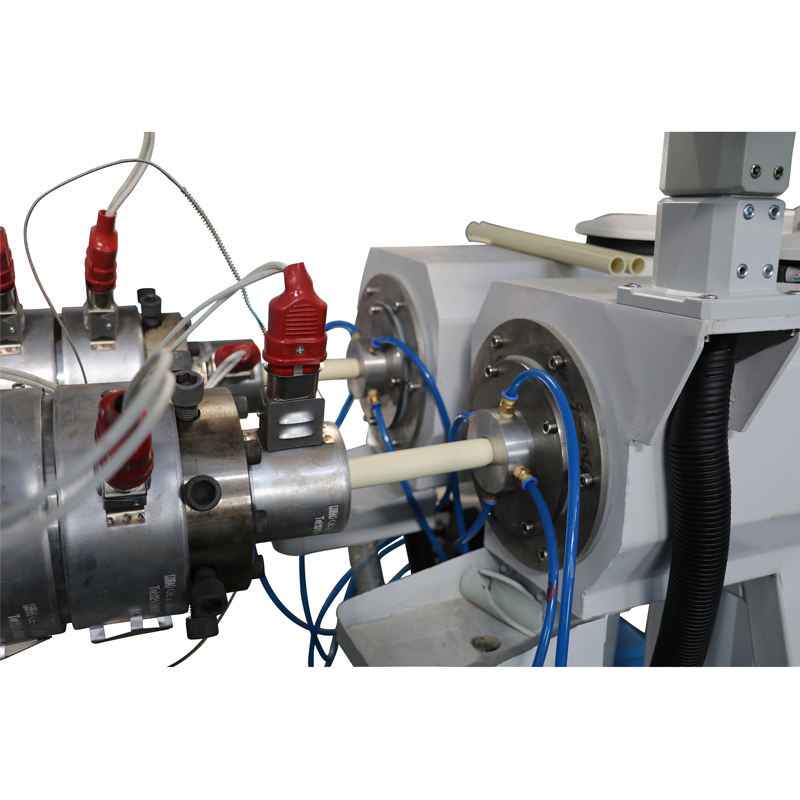

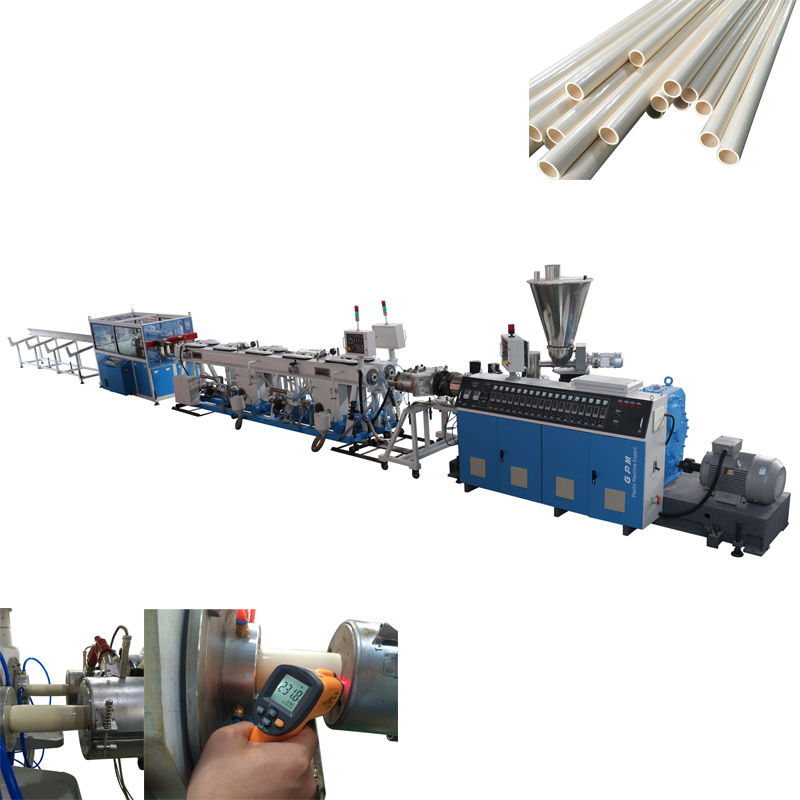

CPVC Pipe Extrusion Line is composed of conical double screw extruder, mould, vacuum molding & cooling water tank, haul-off unit, cutter, stacker, electrical control system, crusher, hot and cooling mixer, spare parts and so on.The extruder adopts frequency conversion.The screw core adopts automatic system to control the temperature.The screw adopts specially designed super cone structure. The output can be increased by 50% and the power can be 20-30% saved. Hardened reducer can continuous trouble-free operation. All units integrated design,the host and the auxiliary work at the same time. It’s an ideal line for production of pipes with high efficiency, high performance, high stability.

Quantity:
  • GWG63 CPVC Dual-Pipe Extrusion Line
  • GPM CPVC Dual-Pipe Extrusion Line
  • 84772090
  • 30 working days
  • T/T; L/C; Cash.etc.
  • 13 months
  • Engineer available
  • Testing before delivery
  • CE; SGS; UL
  • Respond within 24 hours
  • SIEMENS brands
  • SIEMENS;SCHNEIDER;ABB;OMRON, etc.

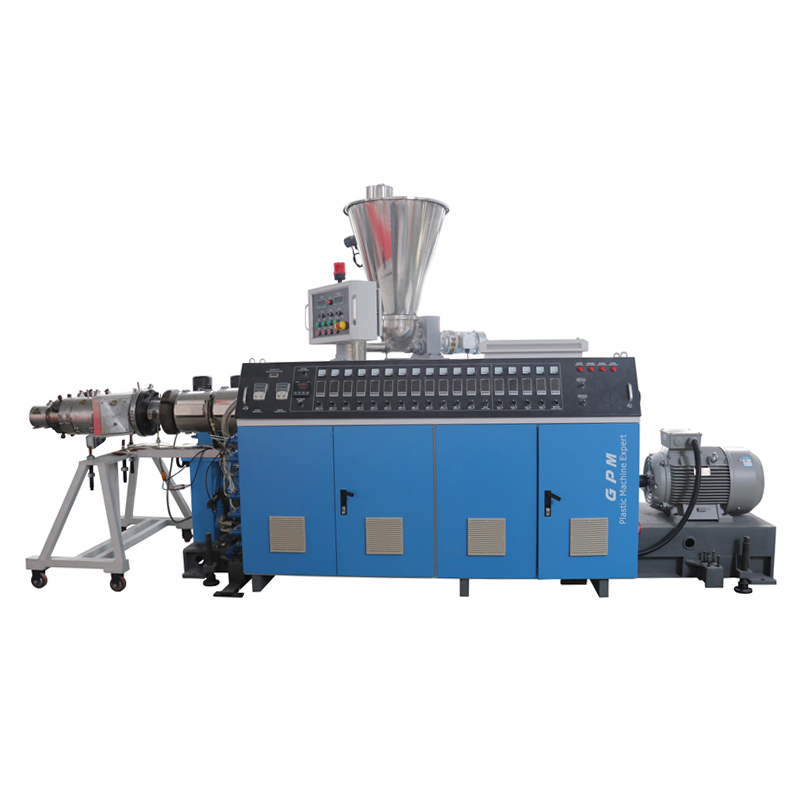

GZ Series Conical Twin Screw Extruder is suitable for the extrusion of all kinds of CPVC materials, and UPVC, etc. Special vertical integrated gearbox system, high torque, high output.

CPVC Pipe Making Machine is composed of conical double screw extruder, mould, vacuum molding & cooling water tank, haul-off unit, cutter, stacker, electrical control system, crusher, hot and cooling mixer, spare parts and so on.The extruder adopts frequency conversion.The screw core adopts automatic system to control the temperature.The screw adopts specially designed super cone structure. The output can be increased by 50% and the power can be 20-30% saved. Hardened reducer can continuous trouble-free operation. All units integrated design,the host and the auxiliary work at the same time. It’s an ideal line for production of pipes with high efficiency, high performance, high stability.

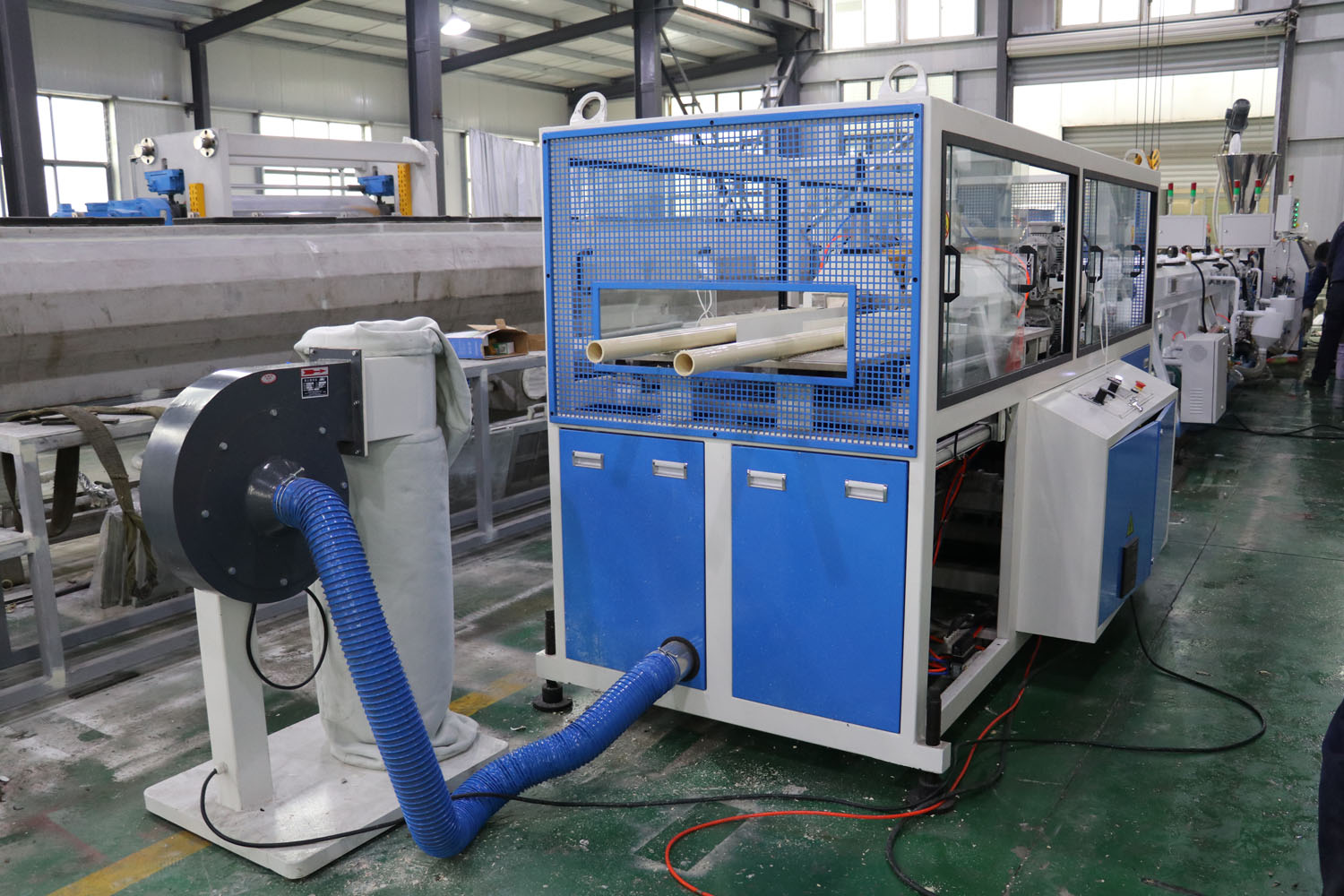

IMG_3460
IMG_3452

Model
Diameter(mm)
Extruder
Output(kg/h)
Consumption(KW)
GWG50-CPVC-2Strands
Φ20-Φ50
GSZ65/132
150-200
96
GWG110-CPVC-2Strands
Φ63-Φ110
GSZ65/132
180-220
136
GWG63-CPVC
Φ20-Φ63
GSZ65/132
120-200
90
GWG110-CPVC
Φ63-Φ110
GSZ65/132
150-200
116


CPVC Pipe Making Machine

1)  Unique screw design structure and processing technology, maximum ensured the plasticization of CPVC raw material and the match of temperature.

2) Various precise temperature control mode, meet the technology requirements of CPVC.
3) Special mold design, achieve the stability of CPVC melt and extrusion.
4) According to customers’ requirements, design a single pipe or double pipe extrusion, high efficiency and productivity.
5. CPVC stable extrusion temperature controlled at 220-230 degree Celsius, achieved the pipe’s best performance.

6)  CPVC Pipe has better tensile strength, bending strength,bending modulus, anti-pressure than PVC

7) Better chemical resistance, thermal resistance, and weather resistance.
8) It won't be affected by the chlorine in the water, keeps the quality of water.
9) High temperature resistance, can bear 110 degree celsius, better than the ppr in supplying hot water.

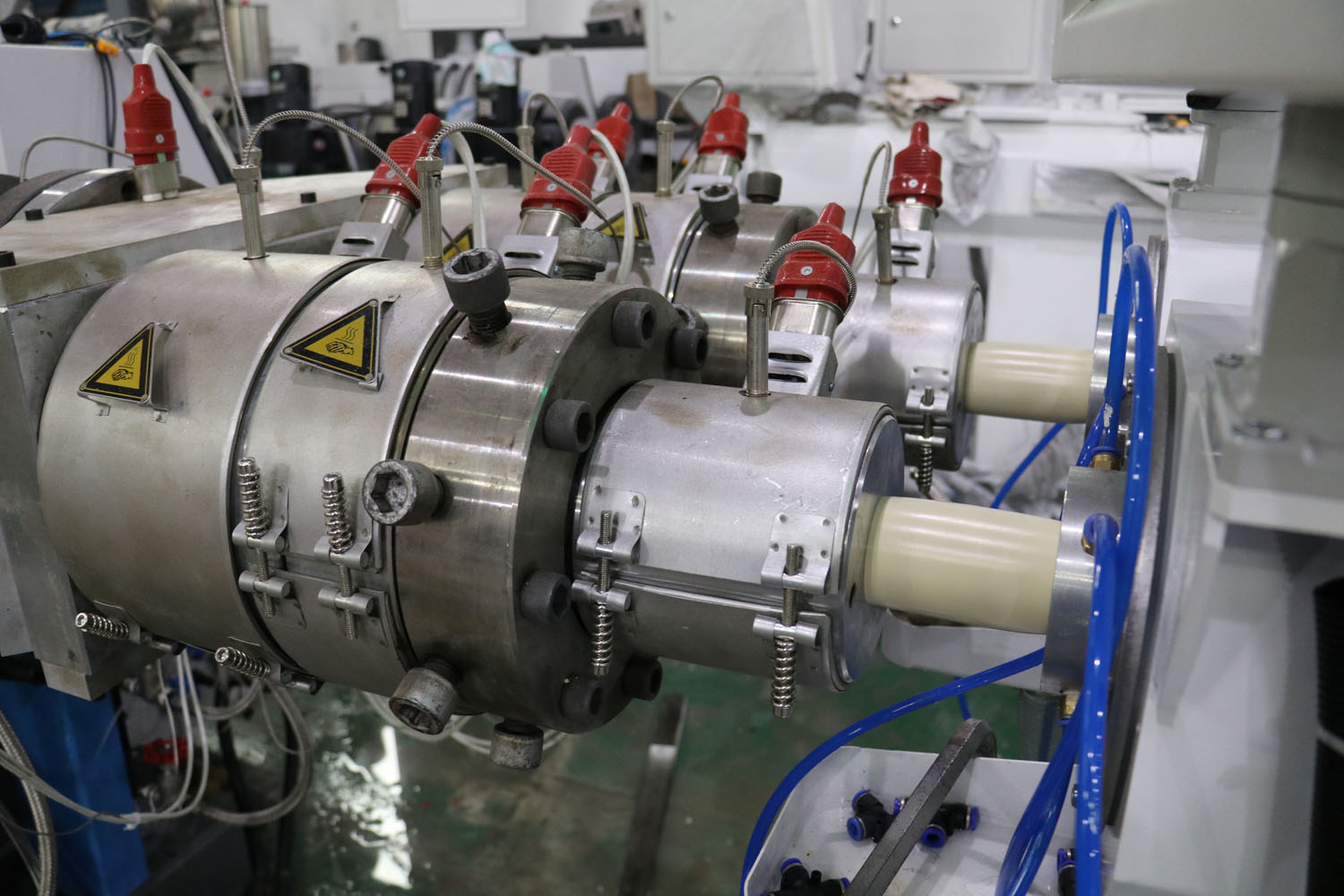

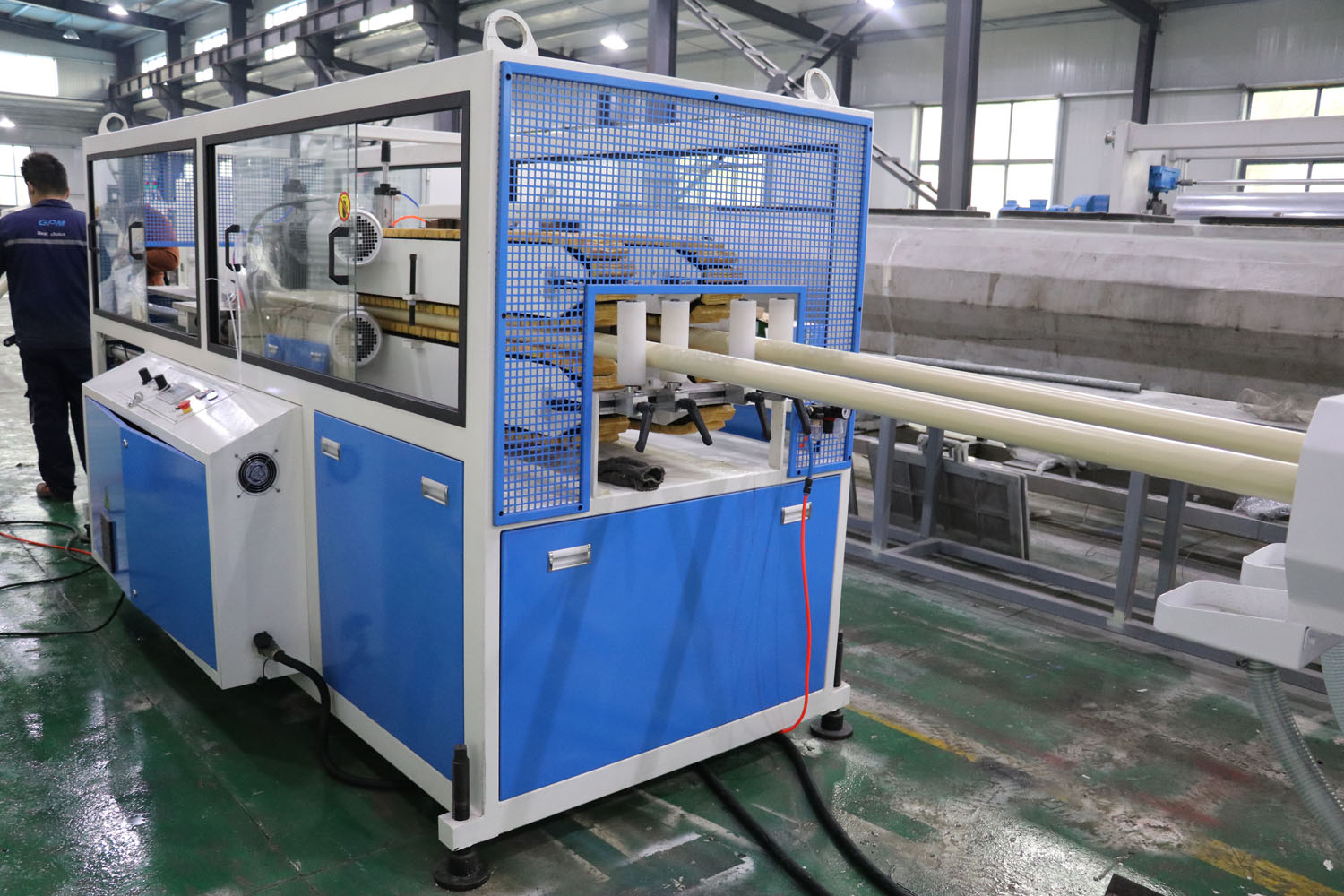

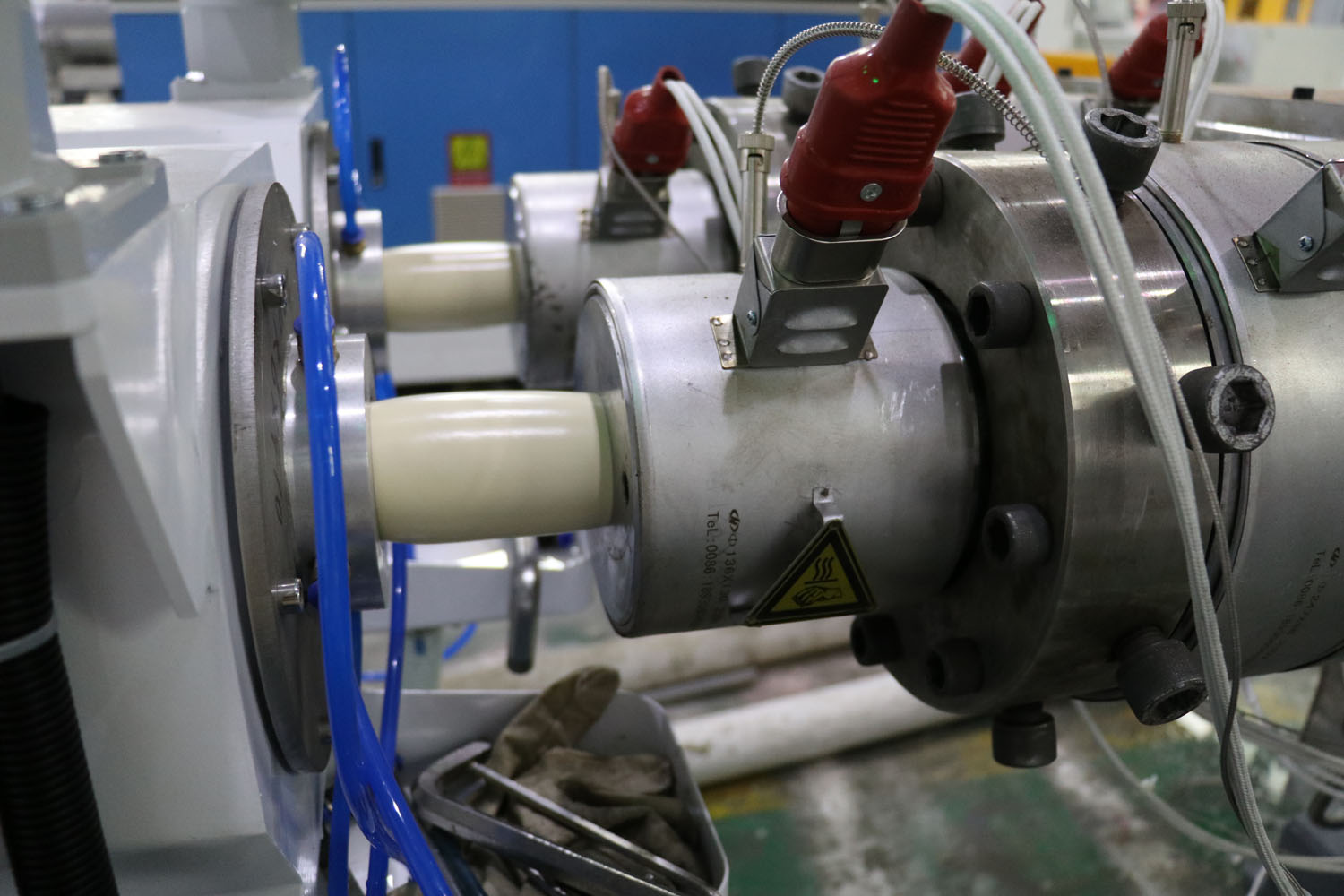

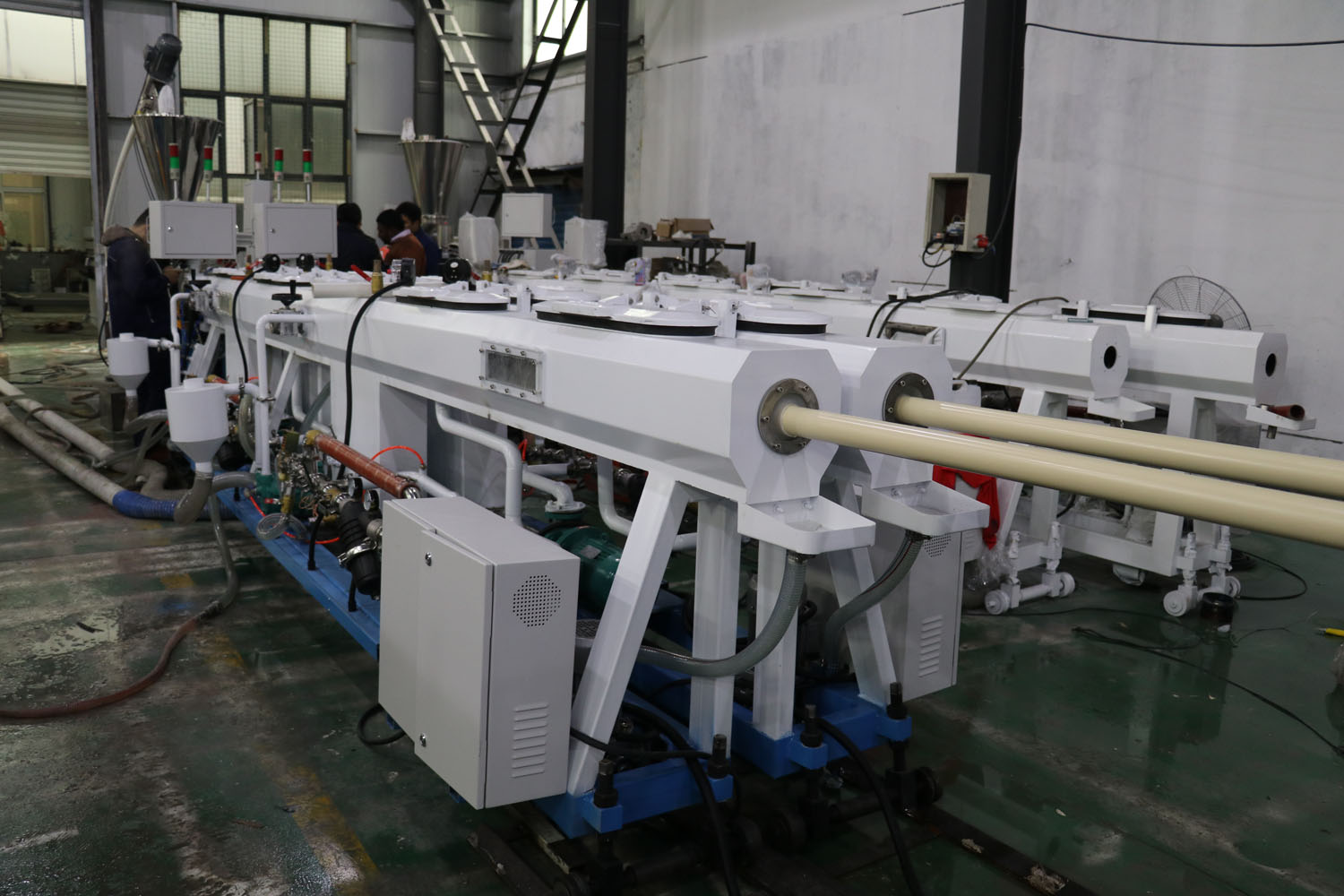

IMG_3350IMG_3361IMG_3402IMG_3410IMG_3372IMG_3451
