1600 HDPE/PO Large Diameter Pipe Extrusion Line

GPM series HDPE/PO Pipe Extrusion Line is mainly used in making the HDPE/PO large diameter pipe. The pipe diameter range: Φ800-1600mm. The maximum ouptut: 2200kg/h.

Quantity:
  • GWG1600 HDPE/PO Pipe Extrusion Line
  • GPM HDPE/PO Pipe Extrusion Line
  • 84772090
  • 60 working days
  • T/T; L/C; Cash.etc.
  • 13 months
  • Engineer available
  • Testing before delivery
  • CE; SGS; UL
  • Respond within 24 hours
  • SIEMENS brands
  • SIEMENS;SCHNEIDER;ABB;OMRON, etc.
HDPE/PO Pipe Extrusion Line

Applicable raw material: HDPE, PO, PP, PPB


GPM Large Diameter Pipe Extrusion Line has many advantages:
1. With some sets of extruders co-extrusion can meet the extrusion capacity 1000-2000kg/h.
2. Adopts mold inner chamber air exhausting cooling method, can reduce the inner temperature of pipe, and reduce the phenomenon of vertical melt.
3. The most reasonable vacuum calibration tank and spraying cooling system.
4. 6-16 claws haul-off system, servo control is optional.
5. High precision annular cutting, can multi-group cutting, suitable for super-thick pipe.
6. Meter weight control and thickness control system are optional, save your cost of raw materials.

2000管材生产线_2345看图王PO Pipe extrusion lineHDPE large diameter pipe making machine

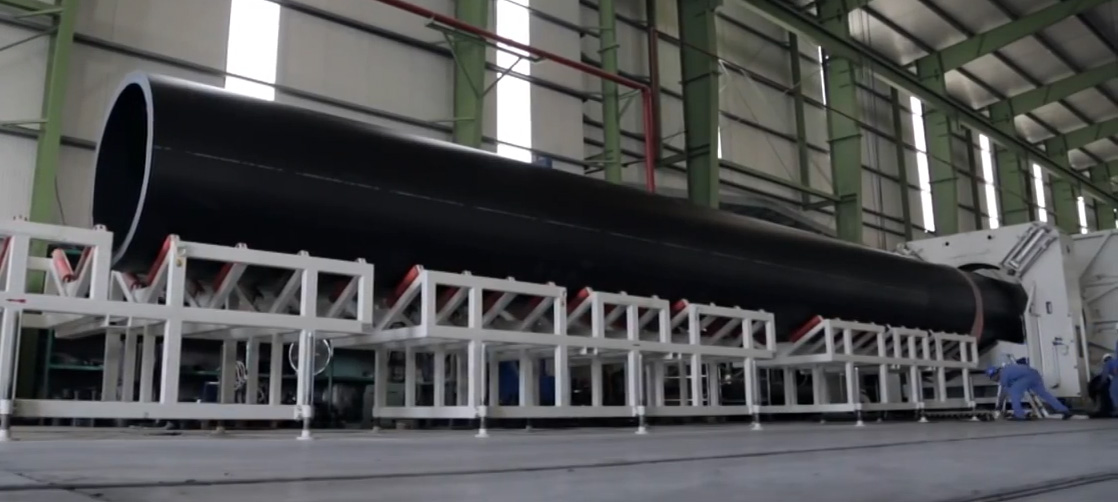

HDPE Large diameter pipe extrusion machine

Technical specifications for HDPE/PO Pipe Extrusion Line
Model
Pipe spec(mm)
Single screw extruder
 Max.output(kg/h)
Total power(kw)
GWG800
Φ400-Φ800
GW120/33
1000-1100
280
GWG1000
Φ630-Φ1000
GW120/38
1200-1300
315
GWG1200
Φ800-Φ1200
GW120/33 /90/38
1500-1700
280/220
GWG1600
Φ1000-Φ1600
GW120/38*2
2000-2200
315*2

Large Diameter Pipe Co-Extrusion Die



Max diameter: 1600mm
High precision multi flow channel
Sepcial customized mold steel material
Reasonable inner and outer heating design
PO pipe production line1


Meter weight control system

PLC control the feeding speed and weight of the hopper
Stable and even extrusion pressure
Even thickness, save raw materials
米重控制机构

The mold core portion suction device

Lower down the inner surface temperature of the pipe mouth mold, reduce the phenomenon of the vertical melt, efficiently shorten the cooling length.
The hot air from the suction can do the pre treatment for drying the PE material, save the electricity cost.
大管芯部抽风冷却

Large diameter pipe leading device

Use the winch to unreeling and fixed clamping head as the the pipe leading, bigger haul-off torque.
No need extra leading pipe, save waste pipe.
Reliable technology, one time leading out the qualified pipe
pipe drawing machine
