SMC Lamination Machine

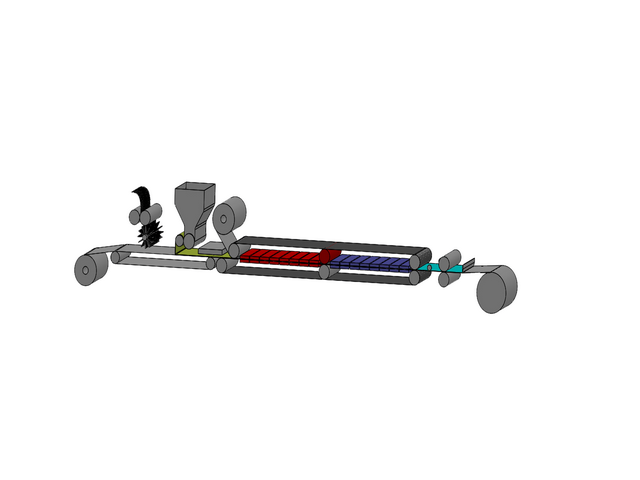

Online realization of unwinding-dusting-chopped fiber spreading-multi-layer lamination-winding/cutting and other processes
One-time molding curing process, reducing curing time and improving efficiency
Process molding temperature can be adjusted in real time
Suitable for continuous compounding of a variety of different materials
Quantity:
  • GPM

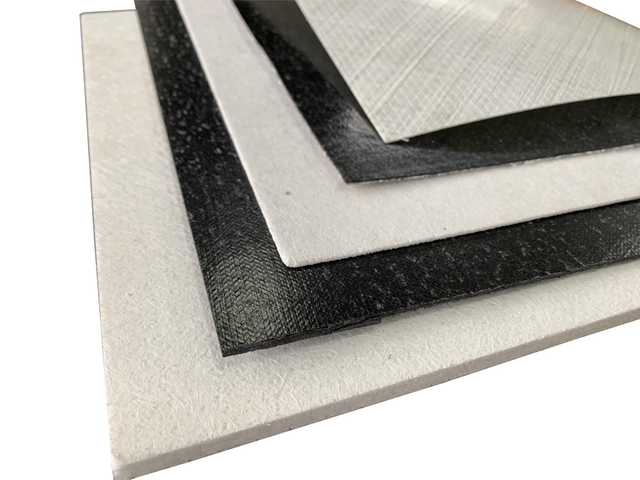

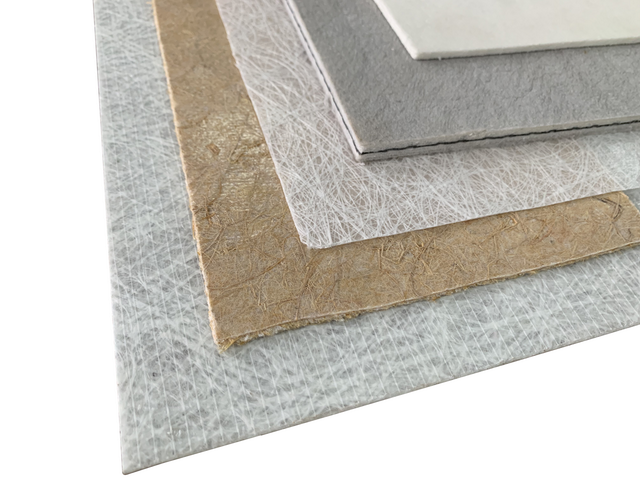

Working principle:It can realize the process of continuous glass fiber and chopped glass fiber and film/resin powder/epoxy resin and others to fast and continuous hot-melt forming sheets.
Applications:Large-scale use in automobiles,agriculture,ships,construction,municipal administration,etc;in which the combination or substitution of thermoplastics and thermosetting materials will be a new direction.

Equipment advantages:
Online realization of unwinding-dusting-chopped fiber spreading-multi-layer lamination-winding/cutting and other processes
One-time molding curing process, reducing curing time and improving efficiency
Process molding temperature can be adjusted in real time
Suitable for continuous compounding of a variety of different materials

Three ways of resin intervention for compound machine:
1) Film unwinding   2) Powder dusting   3) Melt extrusion
Three differences in dusting equipment:
1) Oscillating brush-off system for Powder
2) Rotating brush-off system for Granules
3) Rotating brush-off system for Fibers

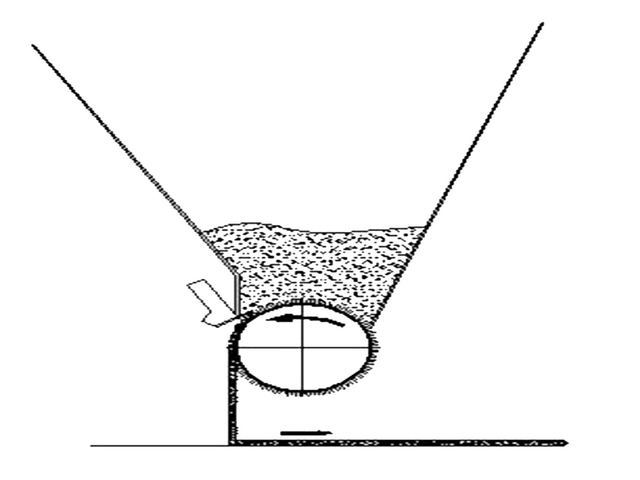

振动粉末播散.1png

                              Oscillating bru sh-off system for Powder

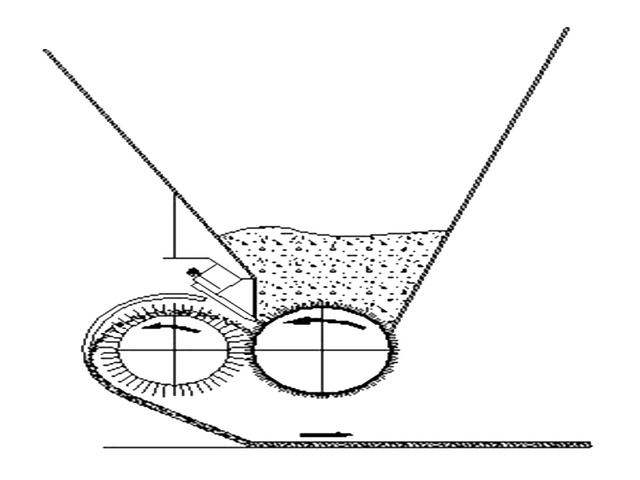

振动颗粒播散.1png

                                  Rotating br ush-off system for Granules

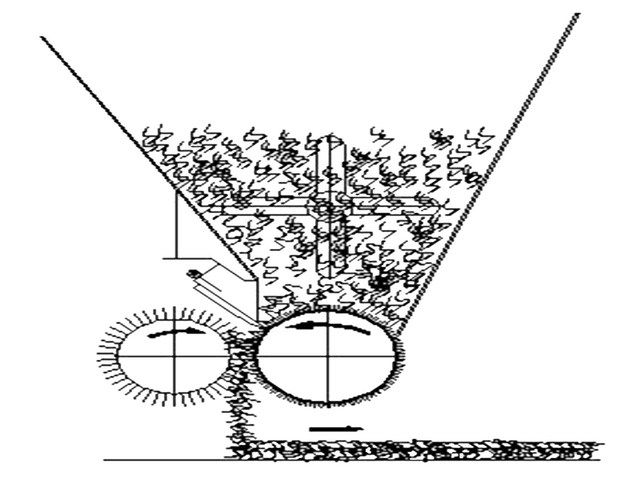

振动纤维播散.1png

                                           Rotating brush-off system for Fibers
