Plastic Pipe Coiler

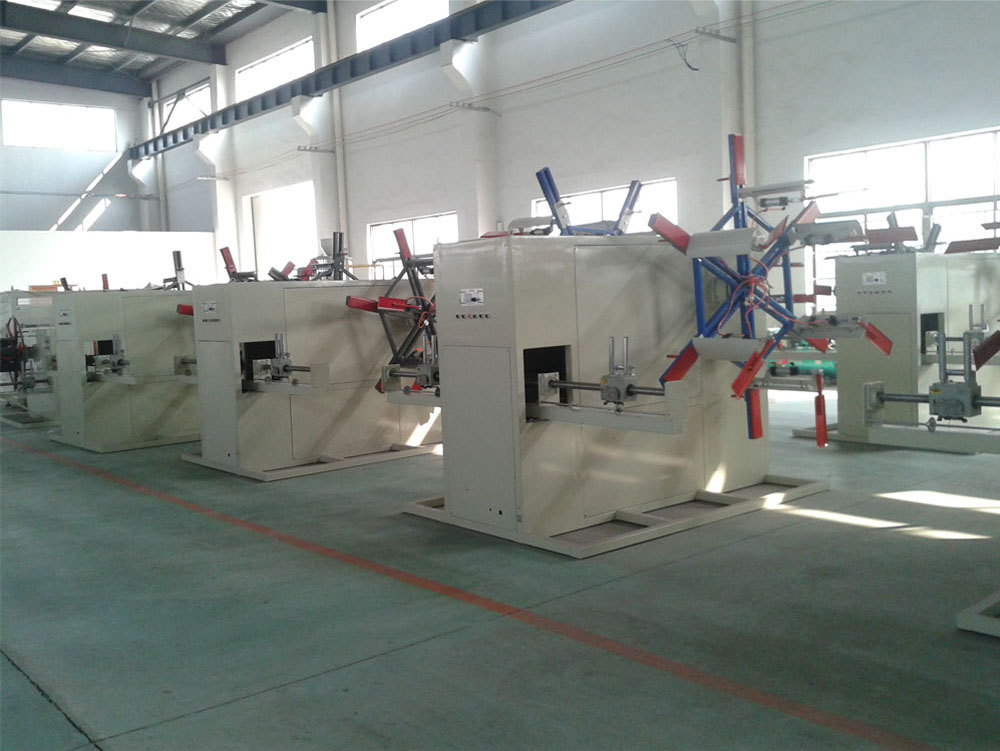

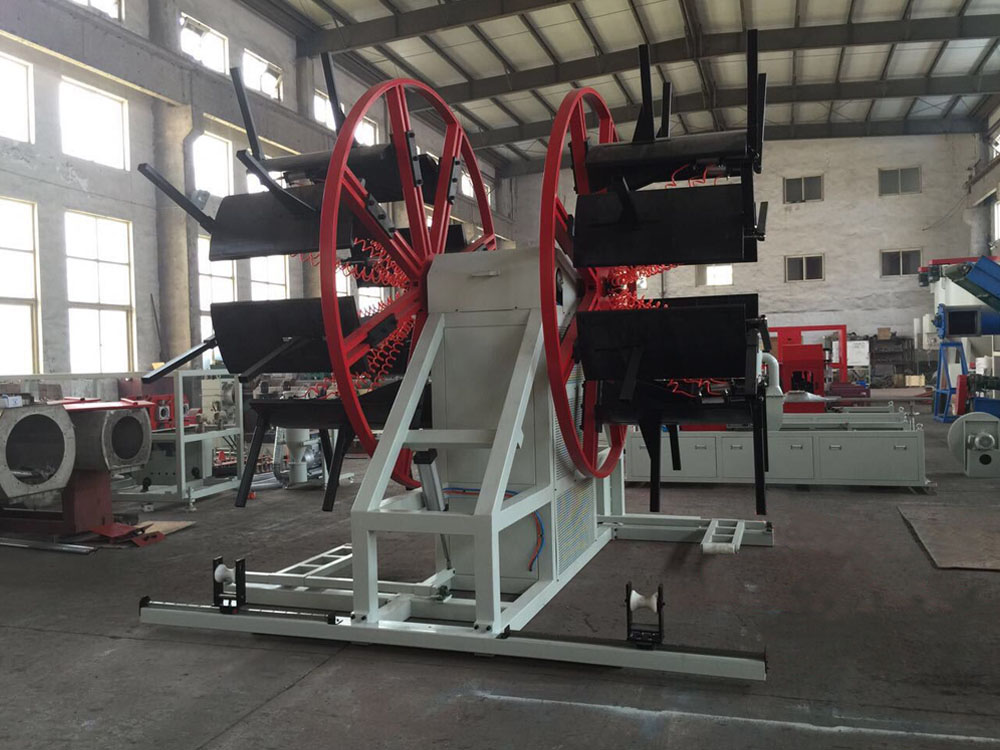

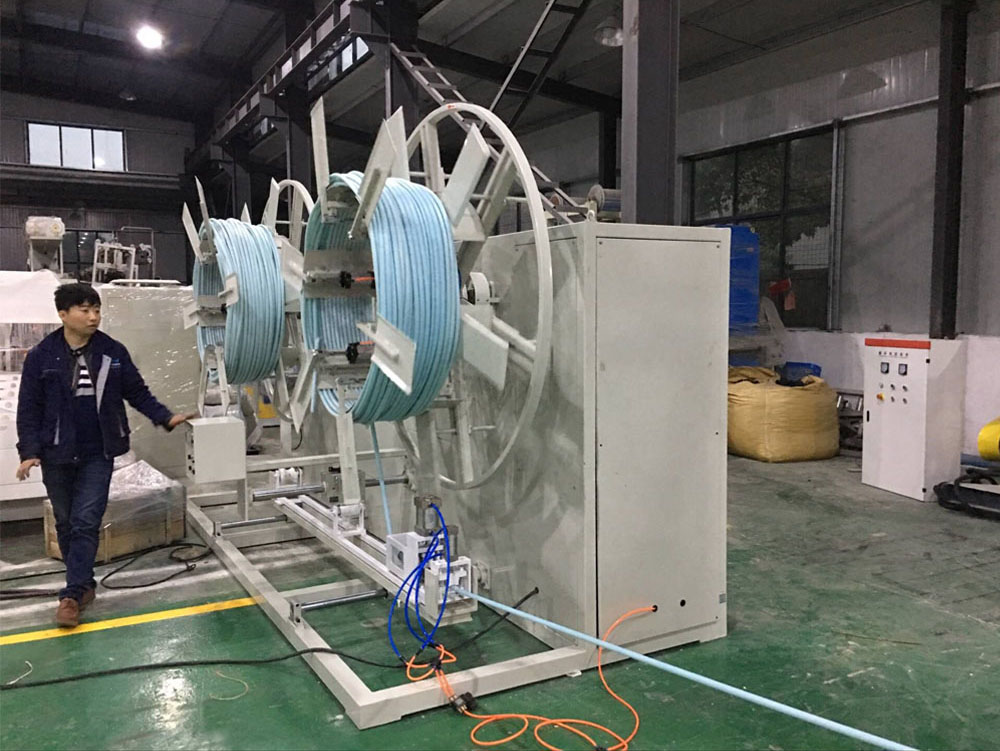

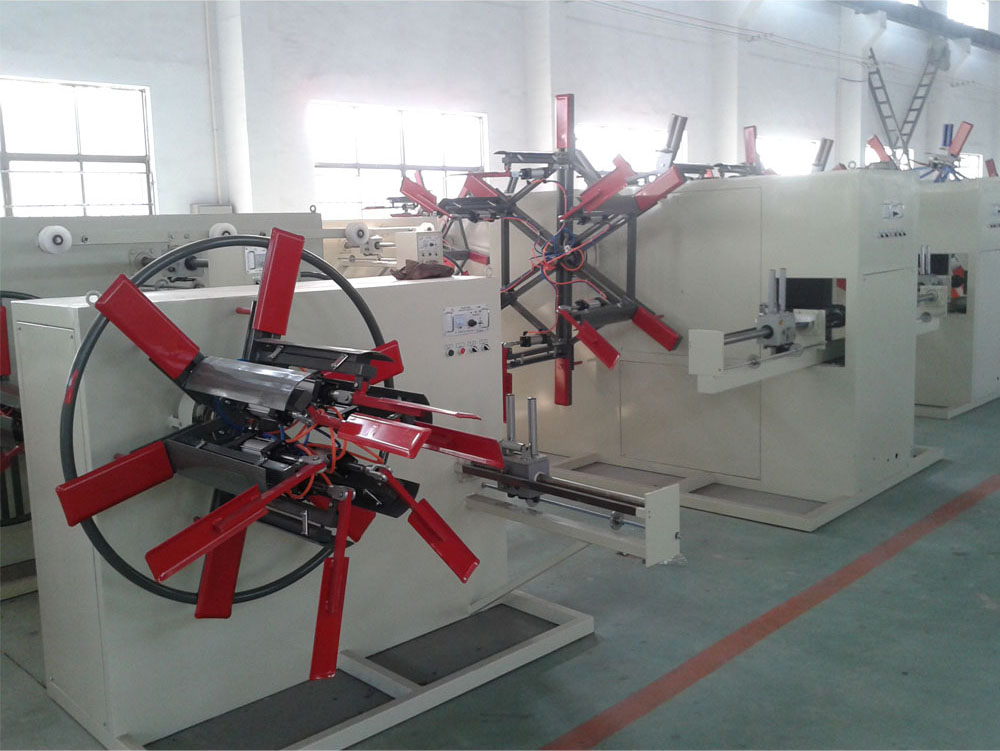

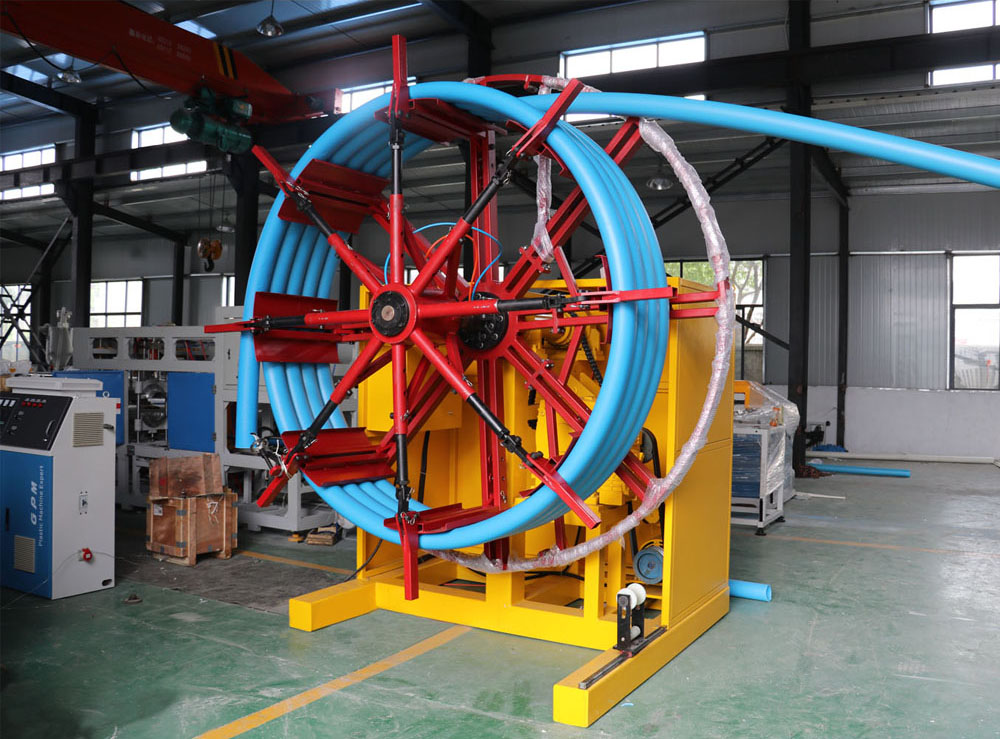

GPM Full-automatic plastic pipe coiler
1. Online high speed winding
2. Three types, automatic winding pipe diameter range: 16 - 110 mm
3. Suitable for pipes like PP/PE/PPR/PERT/PVC, etc.
4. Can be online automatic cutting (can cut the 16-32mm pipe on the coiler)

Quantity:



Inquire Add to Basket

Model:
GWS Plastic Pipe Coiler
Brand:
GPM Plastic Pipe Coiler
Code:
84772090
Delivery:
30 working days
Payment:
T/T; L/C; Cash.etc.
Guarantee:
13 months
Installation:
Engineer available
Testing:
Testing before delivery
Certificate:
CE; SGS; UL
After service:
Respond within 24 hours
Motor:
SIEMENS brands
Mian electrical elements:
SIEMENS;SCHNEIDER;ABB;OMRON, etc.

GPM Full-automatic plastic pipe coiler

1. Online high speed winding

2. Three types, automatic winding pipe diameter range: 16 - 110 mm

3. Suitable for pipes like PP/PE/PPR/PERT/PVC, etc.

4. Can be online automatic cutting (can cut the 16-32mm pipe on the coiler)

plastic Pipe winding price

COMPANY INFO Quick Navigation

PRODUCT CATEGORIES Quick Navigation

CONTACT US Quick Navigation

Add: NO.121,5888# BaoQian Road, Jiading District, Shanghai,China
Tel: 86-138 1755 2980
Tel: 86-21-59569579
Fax: 86-21-59569577
Email: salcc@gpmplas.com

Model	Pipe diameter	Winding speed	Winding OD	Winding ID	Torque motor
GWS-32 Double-position	16-32mm	0-30m/min	1050-1300mm	450-750mm	10N.M
GWS-75 Double-position	16-75mm	0-30m/min	1150-2100mm	550-1500mm	25N.M
GWS-110 Single-position	75-110mm	0-10m/min	1600-3600mm	800-2800mm	40N.M

Model	Pipe diameter	Winding speed	Winding OD	Winding ID	Torque motor
GWS-32 Double-position	16-32mm	0-30m/min	1050-1300mm	450-750mm	10N.M
GWS-75 Double-position	16-75mm	0-30m/min	1150-2100mm	550-1500mm	25N.M
GWS-110 Single-position	75-110mm	0-10m/min	1600-3600mm	800-2800mm	40N.M
