Long Glass Fiber Reinforced Thermoplastics Composites Pellets Making Machine(LFRT)

Quantity:
  • GPM

Product applications

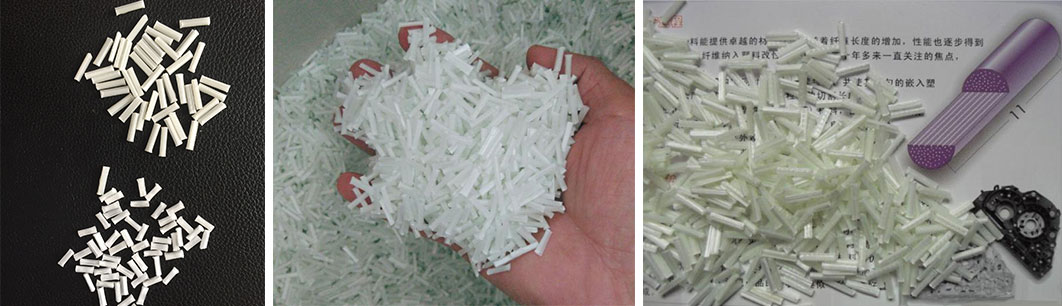

LFT-G pellet is mainly applied in the structural and decorative materials which need high strength, lightweight and safety that for automotive component and trim; lightweight components for aircraft;



Advantages of Pelletizing Line

1.Suitable for glass fiber content:30-60%

2. Length of LET-G pellets:3-30mm

3.New generation infiltrating die, can improve the infiltrating degree between the melt and fiber,

4. New designed pelletizer , the cutter rotary is adjustable according to the different pellet length.



Technical parameters

Model

GWP36

GWP52

GWP65

GWP72

Motor power (KW)

18.5

45

90

132

Raw material

PP/PE/PA/PET/PRT/PLA

Fiber variety

Glass fiber, carbon fiber, nylon, aramid fiber

Strands qty

8-12

16-24

36-48

64-72

Line speed (m/min)

5-20

Capacity (kg/h)

80-150

200-300

350-450

550-650


201807191102154069

201806221706412057

201807191123454667
