Thermoplastic Honeycomb Composite Core Material Production Line

Quantity:
  • GPM

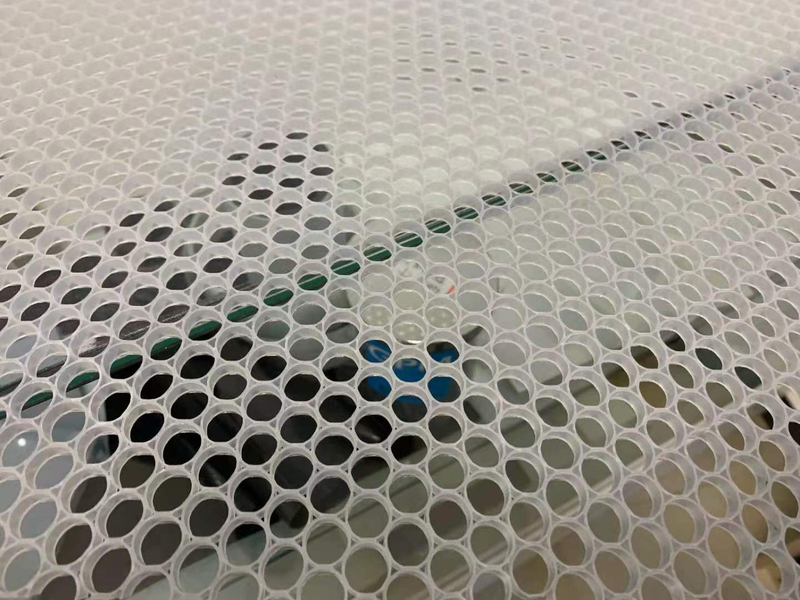

PP Honeycomb Core Tube normally is: the core layer is PP and outer layer is POE, the machine line needs two different extruders to do co-extrusion and then make the pipe.



It can realize the required line speed at 10-200m/min, suitable pipe diameterФ4-20mm, adopts servo cutting system, and can realize three automatic cutting modes: continuous & real-time and fixed-length.



Main technical parameters

Model

Pipe diameter

Screw diameter

Motor power

Output

Line speed

GW45/GW25

4-8 mm

Ф45/Ф25

22kw/2.2kw

30-40kg/h

10-120

GW50/GW25

4-12 mm

Ф50/Ф25

30kw/2.2kw

40-50kg/h

20-150

GW65/GW25

6-20 mm

Ф65/Ф25

37kw/3.0kw

50-80kg/h

30-200



201806221721189275

201806221721199933
